Product Summary

The HX1178NLT is a 10/100BASE-T Transformer Module with PoE Option and 1:1 Turns Ratios.

Parametrics

HX1178NLT absolute maximum ratings: (1)Insertion Loss (dB MAX): 0.1-100 MHz: -1.5; (2)Return Loss (dB MIN @ 100 Ω): 1-30 MHz: -18; 40 MHz: -13.5; 50 MHz: -11.5; (3)Hipot (Vrms MIN): 1500.

Features

HX1178NLT features: (1)RoHS peak reflow temperature rating: 245℃; (2)Compatible with Broadcom, Intel, Micrel, National Semiconductor, ICS, and TDK Transceivers; (3)Meets IEEE 802.3 specification.

Diagrams

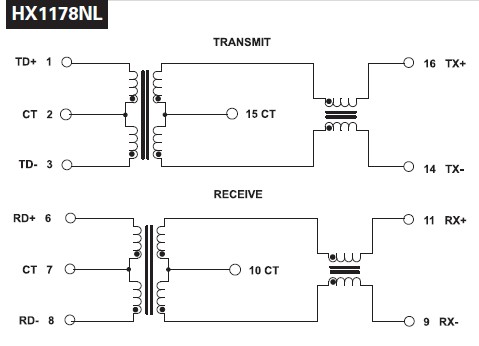

HX1178NLT circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
HX1178NLT
HX1178NLT
Pulse
Transformers Audio & Signal XFMR
Data Sheet
0-180: $2.68
180-300: $2.68
300-500: $2.20
500-1000: $2.05
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
HX1178
HX1178
Pulse
Transformers Audio & Signal XFMR EXT TMP H1012 4 CORE
Data Sheet
0-1: $3.69
1-10: $3.32
10-25: $2.51
25-100: $2.06
HX1178NLT
HX1178NLT
Pulse
Transformers Audio & Signal XFMR
Data Sheet
0-180: $2.68
180-300: $2.68
300-500: $2.20
500-1000: $2.05
