Product Summary

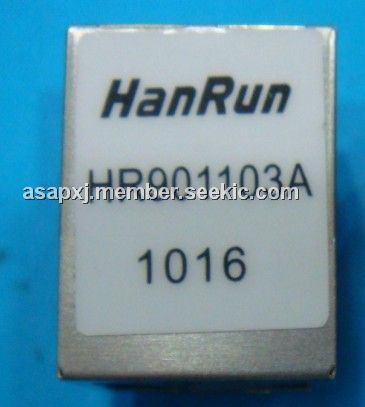

The HR901103A is a single port RJ45 connector with integrated magnetics.
Parametrics
HR901103A absolute maximum ratings: (1)isolation: 1500 Vrms; (2)OCL: 350μH minimum @100 KHz 100 mV with 8mADC; (3)insertion loss: -1.0 dB maximum @300KHz to 100 MHz; (4)return loss: -20 dB maximum @1 MHz to 10 MHz, -16 dB maximum @10 KHz to 30 MHz, -12 dB maximum @30 KHz to 60 MHz, -10 dB maximum @60 KHz to 80 MHz; (5)common mode rejection: -30 dB minimum @ 1 MHz to 50 MHz, -20 dB minimum @ 50 MHz to 150 MHz; (6)crosstalk: -40 dB minimum @ 1 MHz to 30 MHz, -35 dB minimum @ 30 MHz to 60 MHz, -30 dB minimum @ 60 MHz to 100 MHz.
Features
HR901103A features: (1)designed for network interface card application; (2)meets or exceed IEEE802.3 standards including 350uH min OCL with 8mADC; (3)high performance for EMI suppression, crosstalk, return loss and consistent electrical; (4)minimum 1500 Vrms isolation per IEEE802.3 requirement; (5)minimize PCB space and simplify PCB layout; (6)less magnetic components to place on PCB, higher reliability and yields.
