Product Summary
The HEF4538BT is a dual retriggerable-resettable monostable multivibrator. Each multivibrator has an active LOW trigger/retrigger input (I0), an active HIGH trigger/retrigger input (I1), an overriding active LOW direct reset input (CD), an output (O) and its complement (O), and two pins (CTC,(1) RCTC) for connecting the external timing components Ct and Rt. Typical pulse width variation over temperature range is ± 0,2%. The applications of the HEF4538BT include Automotive and industrial.
Parametrics
HEF4538BT absolute maximum ratings: (1)supply voltage: -0.5 to +18 V; (2)input clamping current: ±10 mA at VI < -0.5 V or VI > VDD + 0.5 V; (3)input voltage: -0.5 to VDD + 0.5 V; (4)output clamping current: ±10 mA at VI < -0.5 V or VI > VDD + 0.5 V; (5)input/output current: ±10 mA; (6)supply current: 50 mA; (7)storage temperature: -65 to +150 ℃.
Features
HEF4538BT features: (1)Tolerant of slow trigger rise and fall times; (2)Fully static operation; (3)5 V, 10 V, and 15 V parametric ratings; (4)Standardized symmetrical output characteristics; (5)Operates across the automotive temperature range -40 ℃ to +125 ℃; (6)Complies with JEDEC standard JESD 13-B.

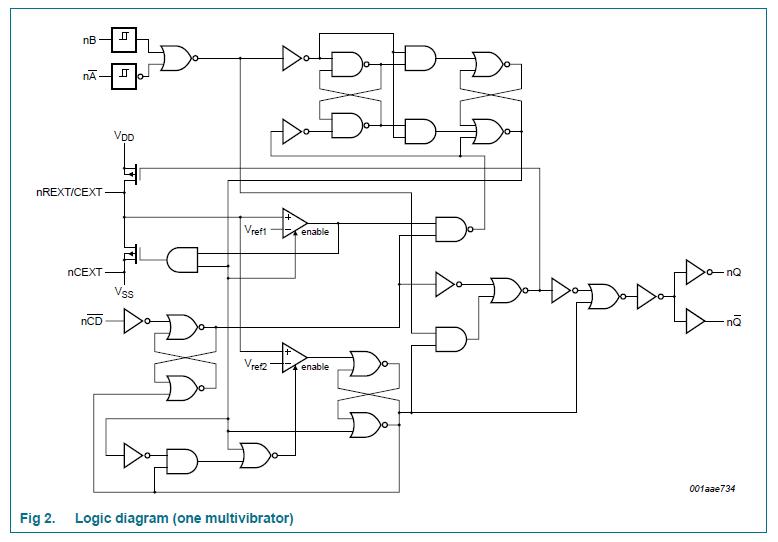

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 HEF4538BT,652 |
NXP Semiconductors |
Monostable Multivibrator DUAL MONO MULTIVIB RETRIG/RESET |
Data Sheet |
|
|
||||||||||||
|
HEF4538BT,653 |
NXP Semiconductors |
Monostable Multivibrator DUAL PRECISION MONOST MULTIVIB |
Data Sheet |
|
|
||||||||||||
