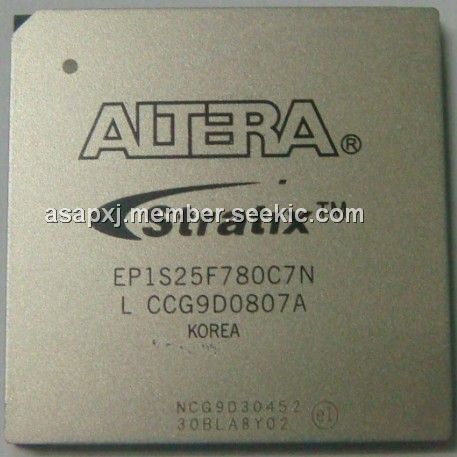

EP1S25F780C7N

Product Summary

The EP1S25F780C7N is a DSP development board. It provides a hardware platform designers can use to start developing DSP systems based on Stratix devices immediately. Combined with DSP intellectual property (IP) from Altera and Altera Megafunction Partners Program (AMPPSM) partners, users can quickly develop powerful DSP systems. Altera’s unique OpenCore Plus technology allows users to try out these IP cores in hardware prior to licensing them. DSP Builder includes a library for the Stratix EP1S25F780C7N DSP development board. This library allows algorithm development, simulation, and verification on the board, all from within The EP1S25F780C7N MathWorks MATLAB/Simulink system-level design tools. Additionally, the Stratix DSP development board has a Texas Instruments’ EVM (cross-platform) daughter card connector, which enables development and verification of FPGA coprocessors.

Parametrics

EP1S25F780C7N absolute maximum ratings: (1)VCCINT, Supply voltage With respect to ground –0.5 to 2.4 V; (2)VCCIO: –0.5 to 4.6 V; (3)VI, DC input voltage: –0.5 to 4.6 V; (4)IOUT, DC output current: –25 to 40 mA; (5)TSTG, Storage temperature: –65 to 150℃; (6)TJ, Junction temperature: 135℃.

Features

EP1S25F780C7N features: (1)Analog I/O: Two 12-bit 125-MHz A/D converters; Two 14-bit 165-MHz D/A converters; Single-ended or differential inputs, and single-ended outputs; (2)Memory subsystem: 2 Mbytes of 7.5-ns synchronous SRAM configured as two independent 36-bit buses; 32 Mbits of flash memory; (3)Configuration options: On-board configuration via the 32 Mbits of flash memory, plus the Altera EPM7064 programmable logic device (PLD); Download configuration data using ByteBlasterMV? ; (4)download cables; (5)Dual seven-segment display; (6)One 8-pin dual in-line package (DIP) switch; (7)Three user-definable pushbutton switches; (8)One 9-pin RS-232 connector; (9)Two user-definable LEDs; (10)On-board 80-MHz oscillator; (11)Single 5-V DC power supply (adapter included).

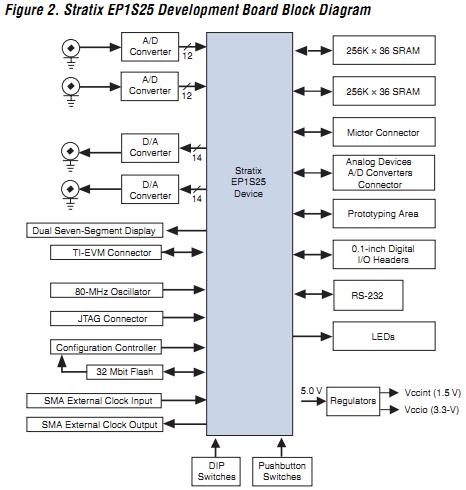

Diagrams
