Product Summary

The TDA1905 is a 5W audio amplifier with muting. The TDA1905 is a monolithic integrated circuit in POWERDIP package, intended for use as low frequency power amplifier in a wide range of applications in radio and TV sets. It is assembled in a new plastic package, the POWERDIP, that offers the same assembly ease, space and cost saving of a normal dual in-line packagebutwith apower dissipationofup to6Wand a thermal resistance of 15℃/W(junction to pins).

Parametrics

TDA1905 absolute maximum ratings: (1)Supply voltage:30 V; (2)Output peak current (non repetitive):3 A; (3)Output peak current (repetitive):2.5 A; (4)Input voltage:0V to + Vs; (5)Differential input voltage:±7V; (6)Muting thresold voltage:Vs; (7)Power dissipation:at Tamb =80℃:1W, Tcase =60℃:6W; (8)Storage and junction temperature -40℃ to 150℃.

Features

TDA1905 features: (1)muting facility; (2)protection against chip over temperature; (3)very lownoise; (4)high supply voltage rejection; (5)low ”switch-on” noise; (6)voltage range 4V to 30V.

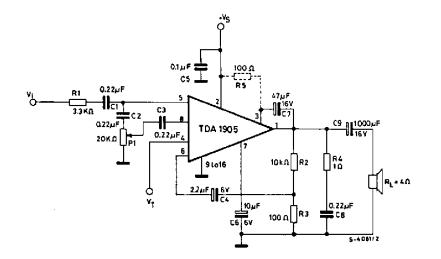

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TDA1905
TDA1905

STMicroelectronics

Audio Amplifiers 5W Audio Amplifier

Data Sheet

Negotiable
