Product Summary
The ELJRE22N is a Non winding (RF, 1E) and wire wound type chip inductor for automatic mounting and high-density mounting. The applications of it are CTV, VTR, HIC, HDD, FDD, Cordless telephones, Portable telephones Pagers, Video cameras.
Parametrics
ELJRE22N general specifications: (1)inductance:22nH, tolerance:±5%; (2)Q min.:10; (3)L, Q test freq.:100MHz; (4)SRF min.:40MHz; (5)DCR max.:0.50Ω; (6)DC current max.:300mA; (7)Q typical(800MHz):40MHz.
Features
ELJRE22N features: (1)High Q; (2)Good for mounting; (3)Wide allowable range (1.0 nH to 1000 μH).

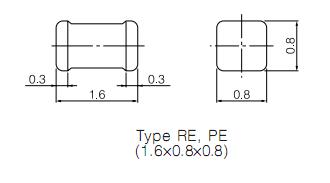

Diagrams
