Product Summary
The DTA123JETL is a 100mA/50V digital transistor with built in resistor.
Parametrics
DTA123JETL absolute maximum ratings: (1)Supply voltage, VCC: -50V; (2)Input voltage, VIN: -12 to +5V; (3)Output current, IO: -100mA; (4)IC(Max.): -100; (5)Power dissipation, Pd: 200mW; (6)Junction temperature, Tj: 150℃; (7)Storage temperature, Tstg: -55 to +150℃.
Features
DTA123JETL features: (1)Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors; (2)The bias resistors consist of thin-film resistors with complete isolation to allow positive biasing of the input; (3)They also have the advantage of almost completely eliminating parasitic effects; (4)Only the on/off conditions need to be set for operation, making device design easy.

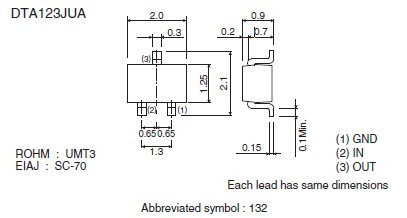

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 DTA123JETL |
ROHM Semiconductor |
Transistors Switching (Resistor Biased) PNP 50V 100MA SOT-416 |
Data Sheet |
|
|
||||||||||||
