Product Summary

Parametrics

Logic Type: Inverter, Buffer
Number of Inputs: 1
Mounting Type: Surface Mount
Features: -
Voltage - Supply: 4.5 V ~ 5.5 V
Logic Level - High: 2V
Logic Level - Low: 0.8V
Number of Circuits: 6

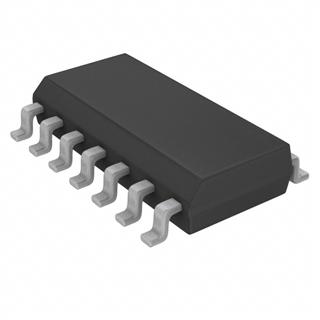

Supplier Device Package: 14-SOIC
Package / Case: 14-SOIC (0.154", 3.90mm Width)
Current - Quiescent (Max): -
Operating Temperature: 0°C ~ 70°C
Series: 74AS
Current - Output High, Low: 2mA, 20mA
Max Propagation Delay @ V, Max CL: 5ns @ 4.5V ~ 5.5V, 50pF
Packaging: Tape & Reel (TR)
Manufacturer: Fairchild Semiconductor

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
DM74AS04MX
DM74AS04MX

Fairchild Semiconductor

Inverters Hex Inverter

Data Sheet

Negotiable
DM74AS04MX_NL
DM74AS04MX_NL

Fairchild Semiconductor

Inverters FINISHED GOOD

Data Sheet

Negotiable
