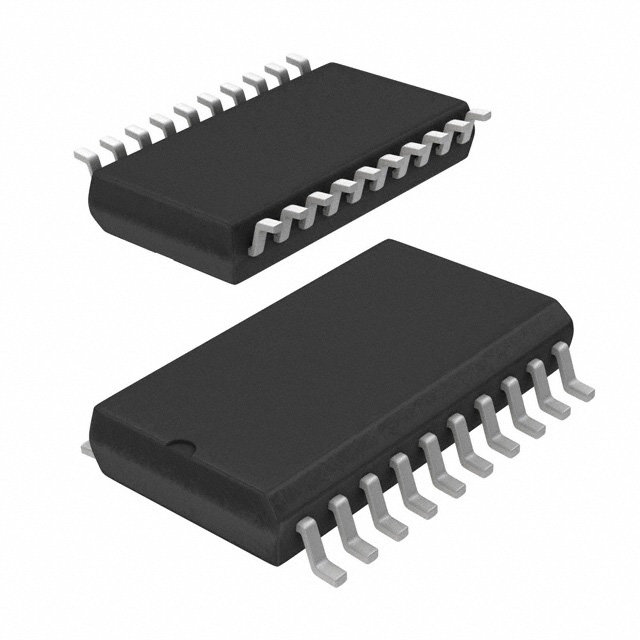

DM74ALS244AWMX

octal 3-STATE bus driver, 7V, 24 mA, 13 ns, 20SOIC

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.12~0.12 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.12~0.12

PartNumber:: DM74ALS244AWMX

Brand:: National Semiconductor - NS | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:DM74ALS244AWMX
US $0.12 - 0.12
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
MOC3063

US $0.32 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

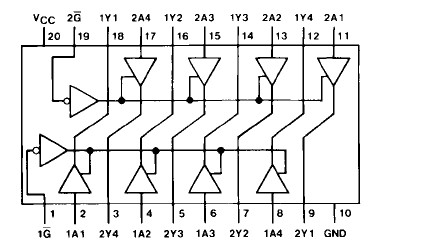

The DM74ALS244AWMX is an octal 3-STATE bus driver designed to provide the designer with flexibility in implementing a bus interface with memory, microprocessor, or communication systems. The DM74ALS244AWMX offers 64-extended temperature Grade product guaranteeing performance from -40℃ to +85℃. The output 3-STATE gating control is organized into two separate groups of four buffers, and both control inputs enable the respective outputs when set logic LOW. The DM74ALS244AWMX contains a feature that maintains the buffer outputs in 3-STATE (high impedance state) during power supply ramp-up or ramp-down. This eliminates bus glitching problems that arise during power-up and power-down.

Parametrics

DM74ALS244AWMX absolute maximum ratings: (1)Supply Voltage, VCC: 7V; (2)Input Voltage: 7V; (3)Voltage Applied to Disabled Output: 5.5V; (4)Operating Free Air Temperature Range: 0℃ to +70℃; (5)Storage Temperature Range: -65℃ to +150℃; (6)IOH HIGH Level Output Current: -15 mA; (7)IOL LOW Level Output Current: 24 mA; (8)tPLZ Output Disable Time from LOW Level Output G Y: 13 ns.

Features

DM74ALS244AWMX features: (1)Advanced low power oxide-isolated ion-implanted Schottky TTL process; (2)Functional and picompatible with the 74LS counterpart; (3)Improved switching performance with less power dissipatiocompared with the 74LS counterpart; (4)Switching response specified into 500W and 50 pF load; (5)Switching response specifications guaranteed over full temperature and VCC supply range; (6)PNP input desigreduces input loading.
