Product Summary
The CY8C21434-24LCXI is a PSoC mixed-signal array with On-Chip Controller device. The CY8C21434-24LCXI is designed to replace multiple traditional MCU-based system components with one, low cost single-chip programmable component. A PSoC device includes configurable blocks of analog and digital logic, as well as programmable interconnect. This architecture allows the user to create customized peripheral configurations, to match the requirements of each individual application. Additionally, a fast CPU, Flash program memory, SRAM data memory, and configurable IO are included in a range of convenient pinouts.
Parametrics
CY8C21434-24LCXI absolute maximum ratings: (1)Storage Temperature: -55 min, 25 typ, +100 max ℃; (2)Ambient Temperature with Power Applied: -40 to +85 ℃; (3)Supply Voltage on Vdd Relative to Vss: -0.5 to +6.0 V; (4)DC Input Voltage Vss: - 0.5 to Vdd + 0.5 V; (5)DC Voltage Applied to Tri-state Vss: - 0.5 to Vdd + 0.5 V; (6)Maximum Current into any Port Pin: -25 to +50 mA; (7)Electro Static Discharge Voltage: 2000 V; (8)Latch-up Current: 200 mA.
Features
CY8C21434-24LCXI features: (1)Powerful Harvard Architecture Processor; (2)Advanced Peripherals (PSoC Blocks); (3)Flexible On-Chip Memory; (4)Complete Development Tools; (5)Precision, Programmable Clocking; (6)Programmable Pin Configurations; (7)Versatile Analog Mux; (8)Additional System Resources.

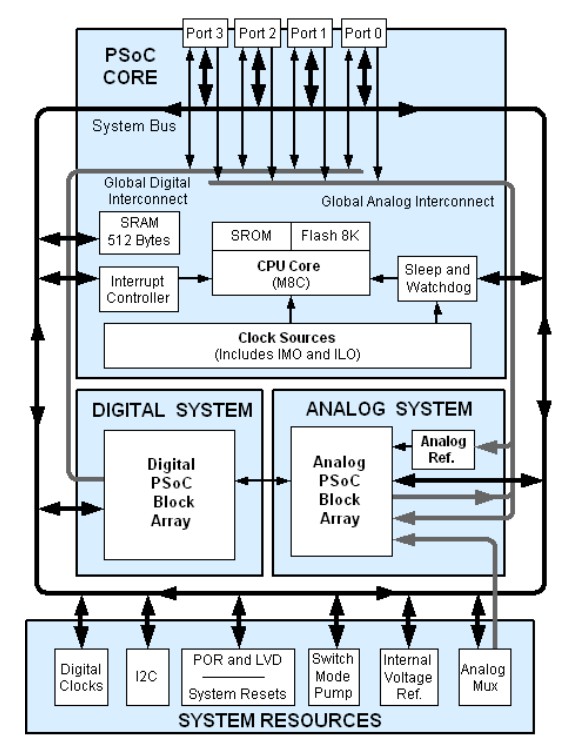

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

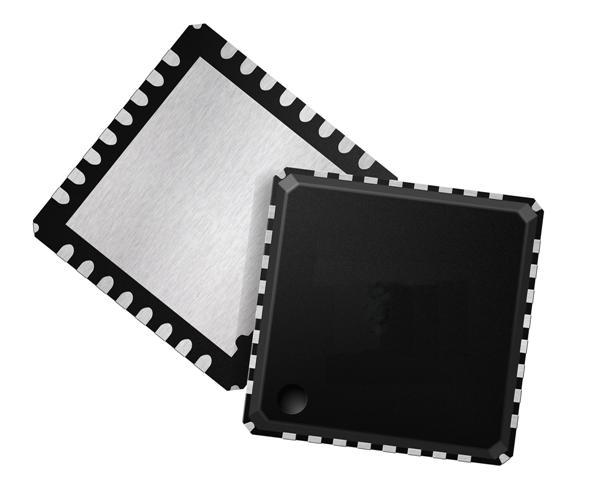

 CY8C21434-24LCXI |
Cypress Semiconductor |
Programmable Systems-on-a-Chip (PSoC) PSoC, 28I/O, 8K Fsh 512 bytes RAM |
Data Sheet |
Negotiable |
|
||||
 |

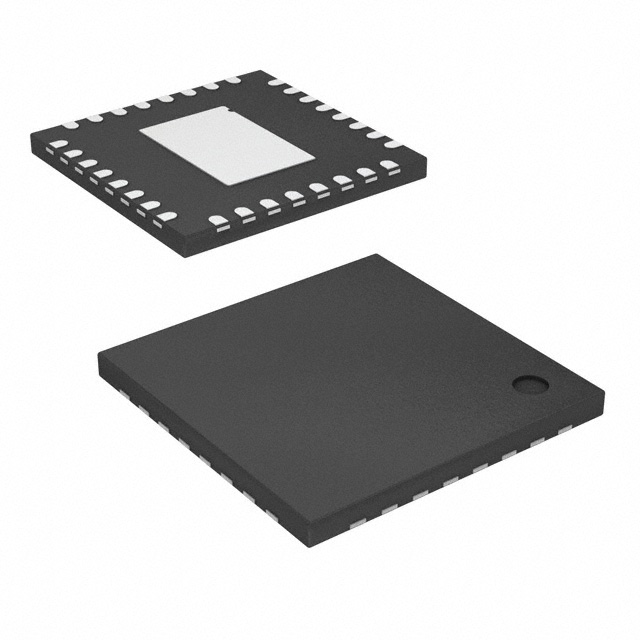

CY8C21434-24LCXIT |
Cypress Semiconductor |
Programmable Systems-on-a-Chip (PSoC) PSoC, 28I/O, 8K Fsh 512 bytes RAM |
Data Sheet |
Negotiable |
|
||||
