Product Summary

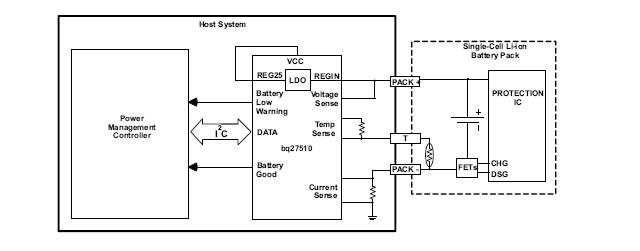

The BQ27510DRZR-G1 system-side Li-Ion battery fuel gauge is a microcontroller peripheral. It provides fuel gauging for single-cell Li-lon battery packs. The BQ27510DRZR-G1 requires little system microcontroller firmware development. The BQ27510DRZR-G1 resides on the system’s main board and manages an embedded battery (non-removable) or a removable battery pack. The applications of the BQ27510DRZR-G1 include Smartphones, PDAs, Digital Still and Video Cameras, Handheld Terminals, MP3 or Multimedia Players.

Parametrics

BQ27510DRZR-G1 absolute maximum ratings: (1)VREGIN Regulator input voltage: –0.3V to 24 V; (2)VCC Supply voltage range: –0.3V to 2.75 V; (3)VIOD Open-drain I/O pins (SDA, SCL, BAT_LOW/BAT_GD): -0.3V to 6V; (4)VBAT BAT input pin: -0.3V to 6 V; (5)VI Input voltage range to all other pins (TS, SRP, SRN, BI/TOUT): –0.3V to VCC+0.3 V; (6)TF Functional temperature range: –40℃ to 100 ℃; (7)TSTG Storage temperature range:–65℃ to 150℃; (8)Human Body Model (HBM), BAT pin: 1.5KV; (9) Human Body Model (HBM), all other pins: 2KV.

Features

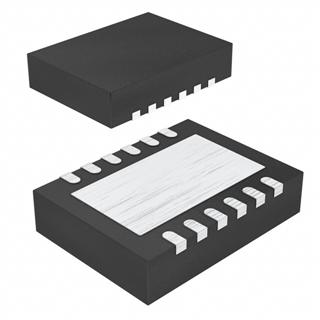

BQ27510DRZR-G1 features: (1)Battery Fuel Gauge for 1-Series Li-Ion Applications; (2)Resides on System Main Board: Works with Embedded or Removable Battery Packs, Uses PACK+, PACK–, and T Battery Terminals, Can be Powered Directly From Battery Pack (no LDO required); (3)Microcontroller Peripheral Provides: Accurate Battery Fuel Gauging, Battery Low Interrupt Warning, Battery Insertion Indicator, 96 Bytes of Non-Volatile Scratch Pad flash; (4)Battery fuel gauging based on patented impedance track technology: Models Battery Discharge Curve for Accurate Time-To-Empty Predictions, Automatically Adjusts for Battery Aging, Battery Self-Discharge, and Temperature/Rate Inefficiencies, Low-Value Sense Resistor (10 mΩ or less); (5)I2C for Connection to System Microcontroller Port; (6)Small 12-pin 2,5 mm×4 mm SON Package.
