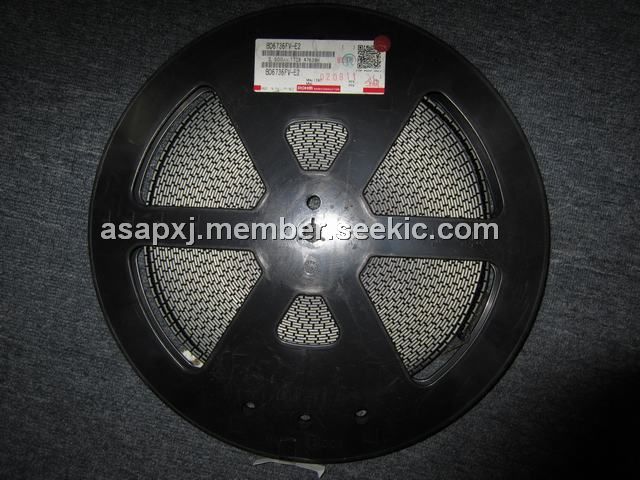

BD6736FV-E2

motor driver, TSSOP, 1.0A, 0.35Ω, 2.0V to 9.0V, BD6736FV-E2, Rohm

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.08~1.08 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.08~1.08

PartNumber:: BD6736FV-E2

Brand:: Rohm - Rohm | Pack: TSSOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-16

From Other Seller

Part Number:BD6736FV-E2
US $1.08 - 1.08
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The BD6736FV-E2 is a motor driver. It provides 1 Full-ON Drive H-bridge channel. It features high voltage resistance and large current output in a compact surface mount package, making the BD6736FV-E2 ideally suited for smaller systems such as Single-Lens Reflex with Interchangeable Lenses.

Parametrics

BD6736FV-E2 absolute maximum ratings: (1)Power supply voltage VCC: -0.5 to +10.0 V; (2)Motor power supply voltage VM: -0.5 to +10.0 V; (3)Charge pump step-up power supply voltage VBST: -0.5 to +15.0 V; (4)Control input voltage VIN: -0.5 to VCC+0.5 V; (5)Power dissipation Pd: 810 mW; (6)Operating temperature range Topr: -30 to +75 ℃; (7)Junction temperature Tjmax: +150 ℃; (8)Storage temperature range Tstg: -55 to +150 ℃; (9)H-bridge output current (DC) Iout: -1000 to +1000 mA/ch; (10)H-bridge output current (Peak) Ipeak: -3200 to +3200 mA/ch.

Features

BD6736FV-E2 features: (1)Low ON-Resistance Power MOS output: Full-ON Drive block with 0.35Ω Typ; (2)DMOS output allowing a range power supply: 2.0V to 9.0V; (3)Built-in step-up circuit for the DMOS gate voltage drive; (4)Drive mode switching function; (5)H bridge maximum output current: DC maximum 1.0A, Peak maximum 3.2A; (6)UVLO (Under Voltage Lockout Protection) function; (7)Built-in TSD (Thermal Shut Down) circuit; (8)Standby current consumption: 0μA Typ.
