Product Summary
The AT45DB011B-SC is a 2.7-volt only, serial interface Flash memory ideally suited for a wide variety of digital voice-, image-, program code- and data-storage applications. Its 1,081,344 bits of memory are organized as 512 pages of 264 bytes each. In addition to the main memory, the AT45DB011B-SC also contains one SRAM data buffer of 264 bytes. The buffer allows receiving of data while a page in the main memory is being reprogrammed. EEPROM emulation (bit or byte alterability) is easily handled with a self-contained three step Read-Modify-Write operation. Unlike conventional Flash memories that are accessed randomly with multiple address lines and a parallel interface, the DataFlash of the AT45DB011B-SC uses a SPI serial interface to sequentially access its data.
Parametrics
AT45DB011B-SC absolute maximum ratings: (1)Temperature under Bias: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)All Input Voltages (including NC Pins) with Respect to Ground: -0.6V to +6.25V; (4)All Output Voltages with Respect to Ground: -0.6V to VCC + 0.6V.
Features
AT45DB011B-SC features: (1)Single 2.7V - 3.6V Supply; (2)Serial Peripheral Interface (SPI) Compatible; (3)20 MHz Max Clock Frequency; (4)Page Program Operation: Single Cycle Reprogram (Erase and Program); 512 Pages (264 Bytes/Page) Main Memory; (5)Supports Page and Block Erase Operations; (6)One 264-byte SRAM Data Buffer; (7)Continuous Read Capability through Entire Array: Ideal for Code Shadowing Applications; (8)Fast Page Program Time – 7 ms Typical; (9)120 μs Typical Page to Buffer Transfer Time; (10)Low Power Dissipation: 4 mA Active Read Current Typical; 2 μA CMOS Standby Current Typical; (11)Hardware Data Protection Feature; (12)100% Compatible with AT45DB011; (13)Commercial and Industrial Temperature Ranges; (14)Green (Pb/Halide-free/RoHS Compliant) Packaging Options.

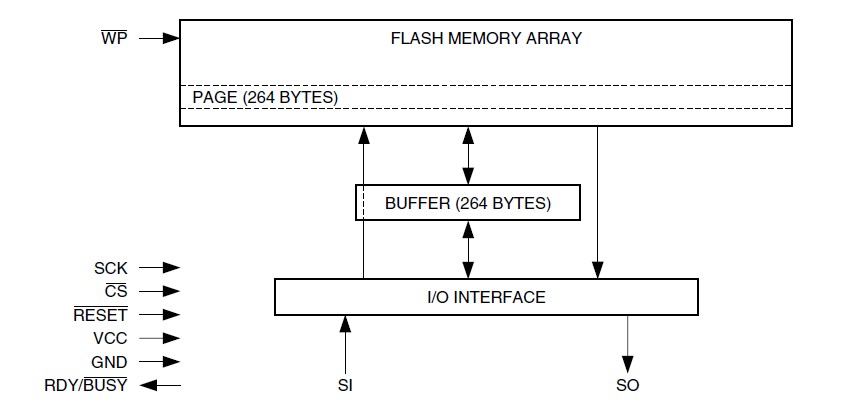

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AT45DB011B-SC |
Atmel |
Flash 1M SERIAL 2.7V - COM TEMP |
Data Sheet |
Negotiable |
|
||||||||||||
