Product Summary

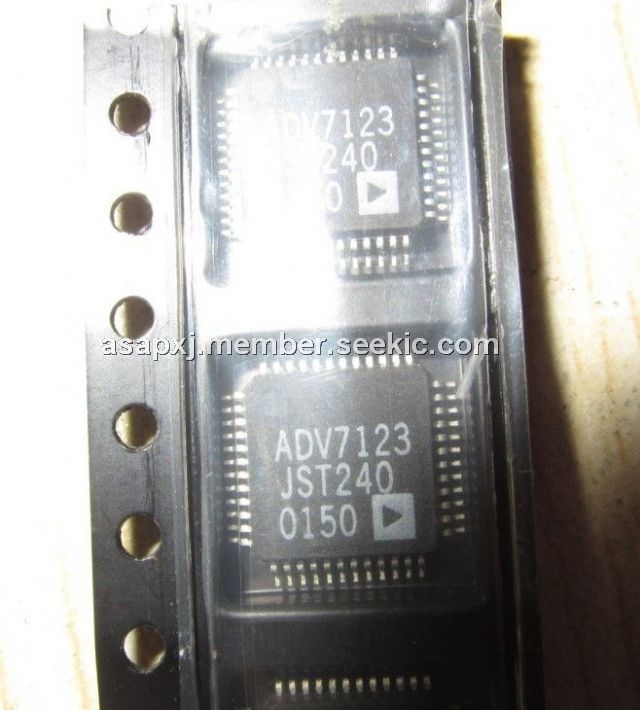

The ADV7123JST240 is a triple high speed, digital-to-analog converter on a single monolithic chip. The ADV7123JST240 consists of three high speed, 10-bit, video D/A converters with complementary outputs, a standard TTL input interface and a high impedance, analog output current source. The ADV7123 has three separate 10-bit-wide input ports.
Parametrics
ADV7123JST240 absolute maximum ratings: (1)VAA to GND:+7V; (2)Voltage on any Digital Pin: GND -0.5 V to VAA +0.5 V; (3)Ambient Operating Temperature:-40℃ to +85℃; (4)Storage Temperature:-65℃ to +150℃; (5)Junction Temperature:+150℃; (6)Lead Temperature:+300℃; (7)Vapor Phase Soldering(1 Minute):220℃; (8) IOUT to GND2:0V to VAA.
Features
ADV7123JST240 features: (1)240 MSPS Throughput Rate; (2) Triple 10-Bit D/A Converters; (3)–70 dB at FCLK = 50 MHz; FOUT = 1 MHz;–53 dB at FCLK = 140 MHz; FOUT = 40 MHz; (4) RS-343A/RS-170 Compatible Output; (5)Complementary Outputs; (6)DAC Output Current Range 2 mA to 26 mA; (7)Internal Reference (1.23 V);(8)Single Supply +5 V/+3.3 V Operation; (9)48-Lead LQFP Package; (10)Low Power Dissipation (30 mW min @ 3 V); (11)Low Power Standby Mode (6 mW typ @ 3 V); (12)Industrial Temperature Range (–408℃ to +858℃).

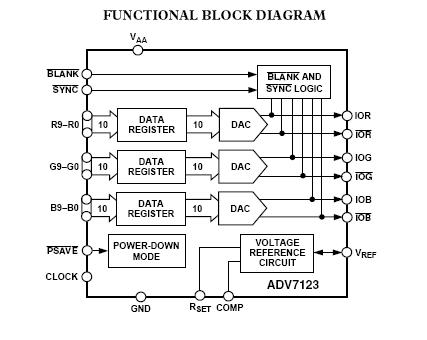

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADV7123JST240 |
Analog Devices Inc |
IC DAC VIDEO TRPL HI SPD 48-LQFP |
Data Sheet |
Negotiable |
|
||||
|
ADV7123JST240-REEL |
Analog Devices Inc |
IC DAC VIDEO 3-CH 240MHZ 48LQFP |
Data Sheet |
Negotiable |
|
||||
