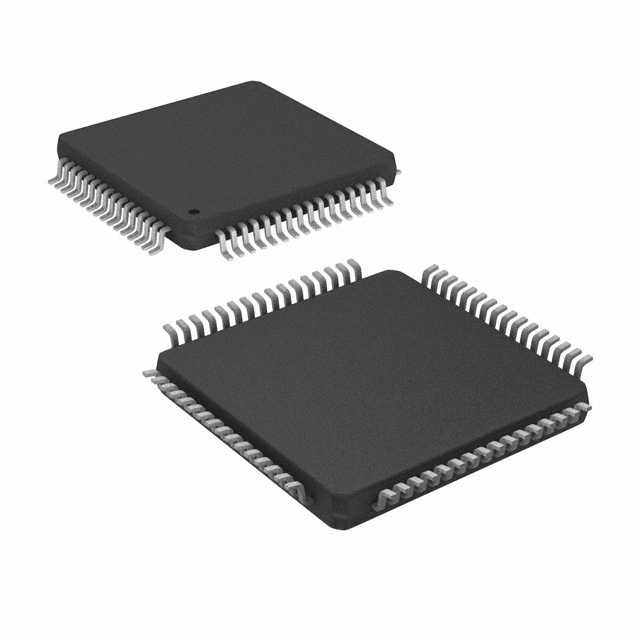

Product Summary
The ADS5232IPAG is a dual, high-speed, high dynamic range, 12-bit pipelined analog-to-digital converter (ADC). The ADS5232IPAG includes a high-bandwidth sample-and-hold amplifier that gives excellent spurious performance up to and beyond the Nyquist rate. The differential nature of the sample-and-hold amplifier and ADC circuitry minimizes even-order harmonics and gives excellent common-mode noise immunity. PP to 2VPP The ADS5232IPAG provides for setting the full-scale range of the converter without any external reference circuitry. The internal reference can be disabled, allowing low-drive, external references to be used for improved tracking in multichannel systems.
Parametrics
ADS5232IPAG absolute maximum ratings: (1)Supply Voltage Range, AVDD: -0.3V to +3.8V; (2)Supply Voltage Range, VDRV: -0.3V to +3.8V; (3)Voltage Between AVDD and VDRV: -0.3V to +0.3V; (4)Voltage Applied to External REF Pins: -0.3V to +2.4V; (5)Analog Input Pins(2)-0.3V to min: [3.3V, (AVDD + 0.3V)]; (6)Case Temperature: +100℃; (7)Operating Free-Air Temperature Range, TA: -40℃ to +85℃; (8)Lead Temperature: +260℃; (9)Junction Temperature: +105℃; (10)Storage Temperature: -65℃ +150℃.
Features
ADS5232IPAG features: (1)Single +3.3V Supply; (2)High SNR: 70.7dBFS at fIN = 5MHz; (3)Total Power Dissipation: Internal Reference: 371mW, External Reference: 335mW; (4)Internal or External Reference; (5)Low DNL: ±0.3LSB; (6)Flexible Input Range: 1.5V; (7)TQFP-64 Package.

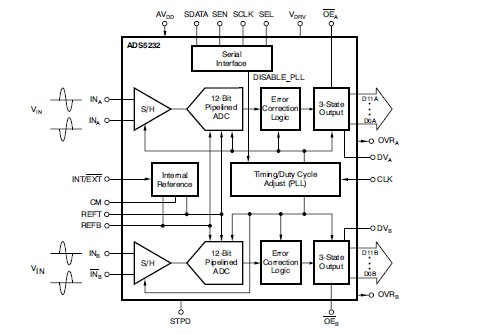

Diagrams
