Product Summary

The ADM2483 is a half-duplex iCoupler-R isolated RS-485 transceiver.

Parametrics

ADM2483 absolute maximum ratings: (1)VDD: -0.5 V to +7 V; (2)Digital Input Voltage (DE, RE, T × D): -0.5 V to VDD1 +0.5 V; (3)Digital Output Voltage R × D: -0.5 V to VDD1 +0.5 V; (4)Driver Output/Receiver Input Voltage: -9 V to +14 V; (5)Operating Temperature Range: -40℃ to +85℃; (6)Storage Temperature Range: -55℃ to +150℃; (7)Average Output Current per Pin: -35 mA to +35 mA; (8)θJA Thermal Impedance: 73℃/W.

Features

ADM2483 features: (1)500 kbps data rate; (2)Slew rate–limited driver outputs; (3)Low power operation: 2.5 mA max; (4)Suitable for 5 V or 3 V operation (VDD1); (5)High common-mode transient immunity: >25 kV/μs; (6)True fail-safe receiver inputs; (7)Glitch-free power-up/-down protection; (8)256 nodes on bus; (9)Thermal shutdown protection.

Diagrams

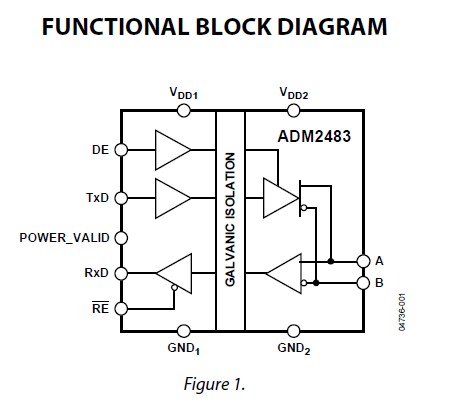

ADM2483 functional block diagram
