Product Summary
The AD9380KSTZ-100 is a complete 8-bit, 150 MSPS, monolithic analog interface optimized for capturing component video (YPbPr) and RGB graphics signals. The AD9380KSTZ-100 offers designers the flexibility of an analog interface and high definition multimedia interface (HDMI) receiver integrated on a single chip. Also the AD9380KSTZ-100 includes support for high bandwidth digital content protection (HDCP). The application of the AD9380KSTZ-100 are advanced TVs, HDTV, projectors, LCD monitor.
Parametrics
AD9380KSTZ-100 absolute maximum ratings: (1)VD:3.6V; (2)VDD:3.6V; (3)DVDD:1.98V; (4)PVDD:1.98V; (5)Analog Inputs: VD to 0.0V; (6)Digital Inputs:5V to 0.0V; (7)Digital Output Current:20mA; (8)Operating Temperature Range:-25℃ to +85℃; (9)Storage Temperature Range:-65℃ to +150℃; (10)Maximum Junction Temperature:150℃; (11)Maximum Case Temperature:150℃.
Features
AD9380KSTZ-100 features: (1) Internal key storage for HDCP; (2)Analog/HDMI dual interface; (3)Supports high bandwidth digital content protection; (4)RGB-to-YCbCr 2-way color conversion; (5) Automated clamping level adjustment; (6)1.8 V/3.3 V power supply; (7)100-lead, Pb-free LQFP; (8)RGB and YCbCr output formats; (9)Analog interface; (9)8-bit triple ADC; (10)100 MSPS maximum conversion rate; (11)Macrovision detection; (12)2:1 input mux; (13)Full sync processing; (14)Sync detect for hot plugging; (15)Midscale clamping; (16)Digital video interface; (17)HDMI 1.1, DVI 1.0; (18)150 MHz HDMI receiver; (19)Supports HDCP 1.1; (20)Digital audio interface; (21)HDMI 1.1-compatible audio interface; (22)S/PDIF (IEC90658-compatible) digital audio output; (23)Multichannel I2S audio output (up to 8 channels).

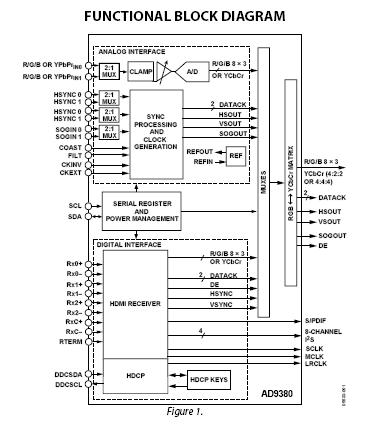

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

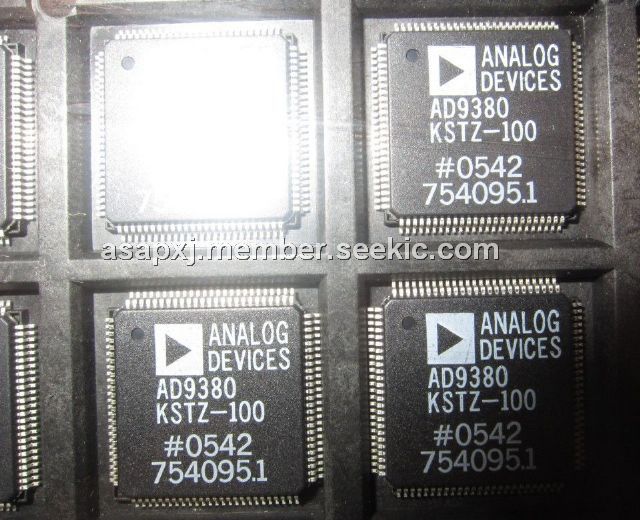

 AD9380KSTZ-100 |
Analog Devices Inc. |
IC INTERFACE 100MHZ HDMI 100LQFP |
Data Sheet |
Negotiable |
|
||||||
