Product Summary

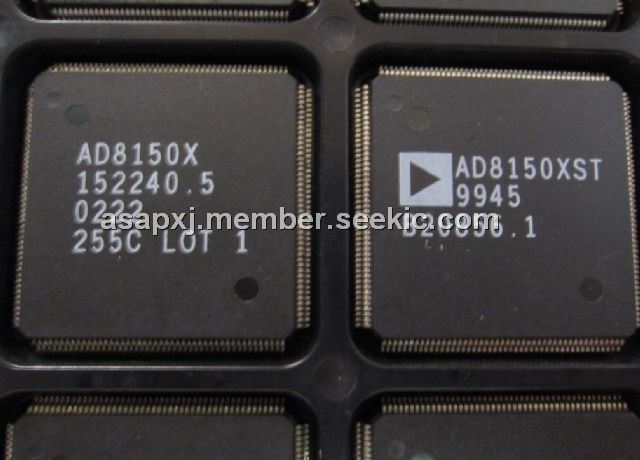

The AD8150AST is a member of the X stream line of products and is a breakthrough in digital switching, offering a large switch array (33 × 17) on very little power, typically less than 1.5 W. Additionally. The AD8150AST operates at data rates in excess of 1.5 Gbps per port,making it suitable for HDTV applications. Further, the pricing of the AD8150AST makes it affordable enough to be used for SD applications as well. It is also useful for OC-24 optical network switching. The applications of The AD8150AST are HD and SD Digital Video and Fiber Optic Network Switching.
Parametrics
AD8150AST absolute maximum ratings: (1)Supply Voltage VDD–VEE:10.5 V; (2)Internal Power Dissipation2:4.2 W; (3)Differential Input Voltage: VCC–VEE; (4)Output Short Circuit Duration: Observe Power Derating Curves; (5)Storage Temperature Range:–65℃ to +125℃; (8)Lead Temperature Range (Soldering 10 sec):300℃.
Features
AD8150AST features: (1)Low Cost; (2)33×17, Fully Differential, Non-blocking Array; (3)＞1.5 Gbps per Port NRZ Data Rate; (4)Wide Power Supply Range: +5 V, +3.3 V, –3.3 V, –5 V; (5)Low Power; (6)400 mA (Outputs Enabled); (7)30 mA (Outputs Disabled); (8)PECL and ECL Compatible; (9)CMOS/TTL-Level Control Inputs: 3 V to 5 V; (10)Low Jitter: ＜50 ps p-p; (11)No Heat Sinks Required; (12)Drives a Backplane Directly; (13)Programmable Output Current; (14)Optimize Termination Impedance; (15)User-Controlled Voltage at the Load; (16)Minimize Power Dissipation; (17)Individual Output Disable for Busing and Building; (18)Larger Arrays; (19)Double Row Latch; (20)Buffered Inputs; (21)Available in 184-Lead LQFP.

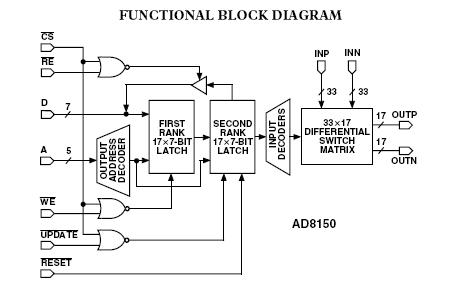

Diagrams

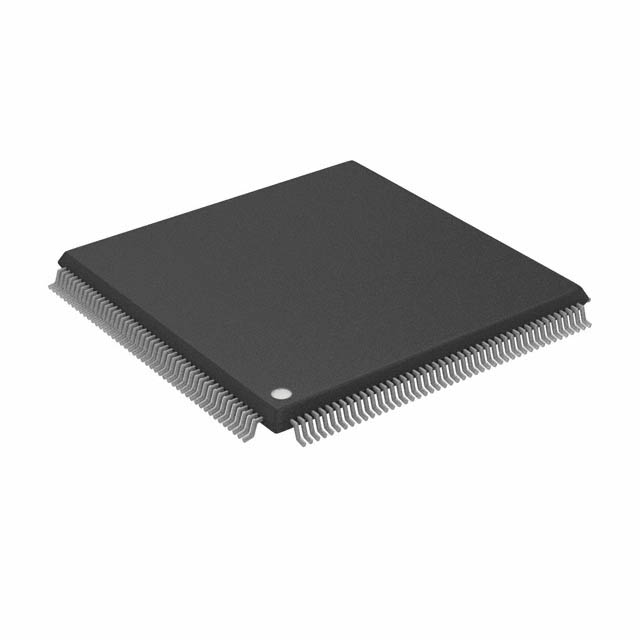

| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD8150AST |
Analog Devices Inc |
IC DGTL CRSSPT SW 33X17 184-LQFP |
Data Sheet |
Negotiable |
|
||||||||||
 |
AD8150ASTZ |
|
IC CROSSPOINT SWIT 33X17 184LQFP |
Data Sheet |
|
|
||||||||||
