Product Summary

The MAX3232 is a transceiver. It has a proprietary low-dropout transmitter output stage enabling true RS-232 performance from a 3.0V to 5.5V supply with a dual charge pump. The devices require only four small 0.1μF external chargepump capacitors. The MAX3232 is guaranteed to run at data rates of 120kbps while maintaining RS-232 output levels. It has 2 receivers and 2 drivers. The MAX3232 features a 1μA shutdown mode that reduces power consumption and extends battery life in portable systems. Its receivers remain active in shutdown mode, allowing external devices such as modems to be monitored using only 1μA supply current. The MAX3232 is pin, package, and functionally compatible with the industry-standard MAX242 and MAX232, respectively.

Parametrics

MAX3232 absolute maximum ratings: (1)VCC: -0.3V to +6V; (2)V+: -0.3V to +7V; (3)V-: +0.3V to -7V; (4)V+ + V-: +13V; (5)Input Voltages, T_IN, SHDN, EN: -0.3V to +6V; MBAUD: -0.3V to (VCC + 0.3V); R_IN: ±25V; (6)Output Voltages, T_OUT: ±13.2V; R_OUT: -0.3V to (VCC + 0.3V); (7)Short-Circuit Duration, T_OUT: Continuous.

Features

MAX3232 features: (1)low supply current; (2)guaranteed data rate, 120kps; (3)1μA low-power shutdown with receivers active; (4)pin compatible with industry-standard.

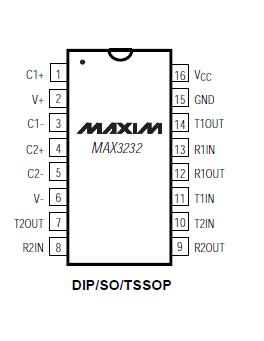

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

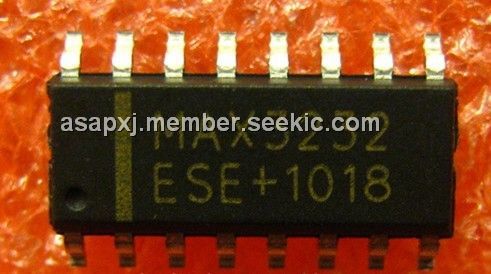

MAX3232
MAX3232

Other


Data Sheet

Negotiable
MAX3232CAE
MAX3232CAE

Maxim Integrated Products

RS-232 Interface IC

Data Sheet

Negotiable
MAX3232CAE+
MAX3232CAE+

Maxim Integrated Products

RS-232 Interface IC 3-5.5V 1Mbps Transceiver

Data Sheet

0-1: $2.93
1-25: $1.95
25-50: $1.42
50-250: $1.39
MAX3232CAE-T
MAX3232CAE-T

Maxim Integrated Products

RS-232 Interface IC

Data Sheet

Negotiable
MAX3232CD
MAX3232CD

Texas Instruments

Buffers & Line Drivers 3-5.5V Multichannel Line Drvr/Rcvr

Data Sheet

0-1: $1.14
1-25: $1.04
25-100: $0.82
100-250: $0.69
MAX3232CDBE4
MAX3232CDBE4

Texas Instruments

RS-232 Interface IC 3-5.5V Multichannel Line Drvr/Rcvr

Data Sheet

0-1: $1.68
1-25: $1.30
25-100: $1.18
100-250: $0.84
MAX3232CDBG4
MAX3232CDBG4

Texas Instruments

RS-232 Interface IC 3-5.5V Multich RS- 232 Line Drvr/Rcvr

Data Sheet

0-1: $1.68
1-25: $1.30
25-100: $1.18
100-250: $0.84
MAX3232CDBRE4
MAX3232CDBRE4

Texas Instruments

Buffers & Line Drivers 3-5.5V Multichannel Line Drvr/Rcvr

Data Sheet

0-1430: $0.59
1430-2000: $0.56
2000-5000: $0.54
5000-10000: $0.52
