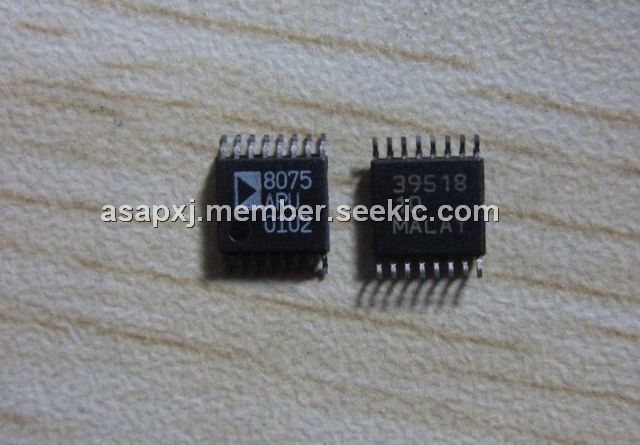

AD8075ARU

AD, 500 MHz, G = +-1 and +2 Triple Video Buffers, SSOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.30~2.40 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.30~2.40

PartNumber:: AD8075ARU

Brand:: Analog Devices - ADI | Pack: SSOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-21

From Other Seller

Part Number:AD8075ARU
US $2.30 - 2.40
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
TOP259EN

US $1.10 - 3.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

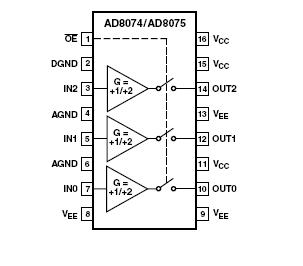

The AD8075ARU is a high-speed triple video buffers with G = +1 and +2 respectively. They have a –3 dB full signal bandwidth in excess of 450 MHz, along with slew rates in excess of 1400 V/μs, with better than –80 dB of all hostile crosstalk and 90 dB isolation. The AD8075ARU is useful in many high-speed applications. The differential gain and differential phase error are 0.01% and 0.01°. Gain flatness of 0.1 dB up to 50 MHz makes the AD8074/AD8075 ideal for RGB buffering or driving. They consume less than 30 mA on a ± 5 V supply. The applications of the AD8075ARU include: RGB Buffer in LCD and Plasma Displays, RGB Driver, Video Routers.

Parametrics

AD8075ARU absolute maximum ratings: (1)Supply Voltage :12.0V; (2)Internal Power Dissipation2, 3 AD8074/AD8075 16-Lead TSSOP (RU):1 W; (3)Input Voltage; (4)IN0, IN1, IN2: VEE≤VIN≤VCC; (5)OE: DGND≤VIN≤VCC; (6)Output Short Circuit Duration: Indefinite3; (7)Storage Temperature Range: –65℃ to +150℃; (8)Lead Temperature Range (Soldering 10 sec):300℃.

Features

AD8075ARU features: (1)Dual Supply ±5 V; (2)High-Speed Fully Buffered Inputs and Outputs; (3)600 MHz Bandwidth (–3 dB) 200 mV p-p; (4)500 MHz Bandwidth (–3 dB) 2 V p-p; (5)1600 V/μs Slew Rate, G = +1; (6)1350 V/μs Slew Rate, G = +2; (7)Fast Settling Time: 4 ns; (8)Low Supply Current: ＜30 mA; (9)Excellent Video Specifications (RL = 150Ω): Gain Flatness of 0.1 dB to 50 MHz, 0.01% Differential Gain Error, 0.01° Differential Phase Error; (10)All Hostile Crosstalk; (11)–80 dB @ 10 MHz; (12)–50 dB @ 100 MHz; (13)High “OFF” Isolation of 90 dB @ 10 MHz; (14) Low Cost; (15) Fast Output Disable Feature.
