Product Summary

The AD7847BR is a complete, dual, 12-bit multiplying digital-to-analog converter with output amplifiers on a monolithic CMOS chip. No external user trims are required to achieve full specified performance. The output amplifier AD7847BR is capable of developing ±10V across a 2kΩ load. It is internally compensated with low input offset voltage due to laser trimming at wafer level. The amplifier feedback resistor AD7847ARZ is internally connected to VOUT on the AD7847.

Parametrics

AD7847BR absolute maximum ratings: (1)VDD to DGND, AGNDA, AGNDB: –0.3V to +17V; (2)VSS1 to DGND, AGNDA, AGNDB: +0.3V to –17V; (3)VREFA, VREFB to AGNDA, AGNDB: VSS–0.3V to VDD+0.3V; (4)AGNDA, AGNDB to DGND: –0.3V to VDD+0.3V; (5)VOUTA2, VOUTB2 to AGNDA, AGNDB: VSS–0.3V to VDD+0.3V; (6)RFBA3, RFBB3 to AGNDA, AGNDB: VSS–0.3V to VDD+0.3V; (7)Digital Inputs to DGND: –0.3V to VDD+0.3V; (8)Operating Temperature Range: –40℃ to +85℃; (9)Extended (S Version): –55℃ to +125℃; (10)Storage Temperature Range: –65℃ to +150℃; (11)Lead Temperature (Soldering, 10 secs): 300℃; (12)Power Dissipation (Any Package) to +75℃: 1000 mW; (13)Derates above +75℃ by: 10 mW/℃.

Features

AD7847BR features: (1)Two 12-Bit MDACs with Output Amplifiers; (2)4-Quadrant Multiplication; (3)Space-Saving 0.3, 24-Lead DIP and 24-Terminal SOIC Package; (4)Parallel Loading Structure: AD7847.

Diagrams

AD7847BR functional block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD7847BR
AD7847BR

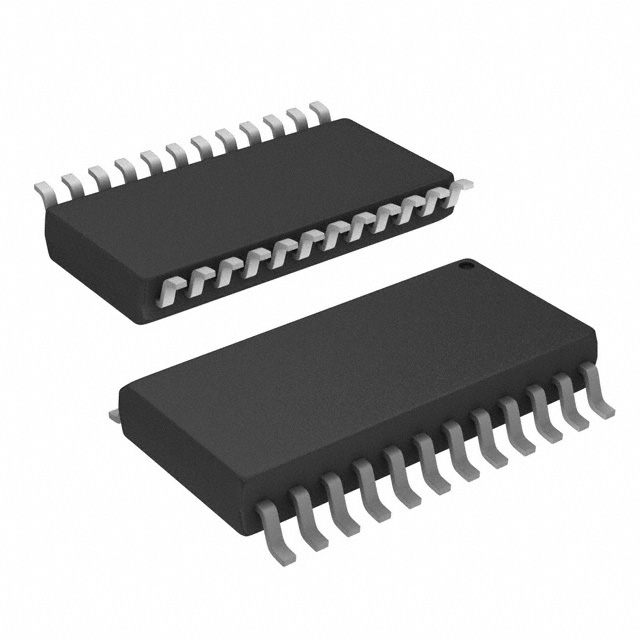

IC DAC 12BIT MULT DUAL 24-SOIC
Data Sheet
0-12: $19.12
AD7847BR-REEL
AD7847BR-REEL
Analog Devices Inc.
IC DAC 12BIT DUAL MULT 24-SOIC
Data Sheet
Negotiable
AD7847BRZ
AD7847BRZ

IC DAC 12BIT DUAL MULT 24-SOIC
Data Sheet
0-1: $19.14
1-10: $17.70
10-100: $15.12
100-250: $13.87
250-500: $13.20
500-1000: $12.76
AD7847BRZ-REEL
AD7847BRZ-REEL

IC DAC 12BIT DUAL MULT 24-SOIC
Data Sheet
0-1000: $12.76
