Product Summary
The AD7533JN is a low cost 10-bit 4-quadrant multiplying DAC manufactured using an advanced thin-film-on-monolithic-CMOS wafer fabrication process. The AD7533JN is recommended as a lower cost alternative for old AD7520 sockets or new 10-bit DAC designs. The AD7533JN application flexibility is demonstrated by its ability to interface to TTL or CMOS, operate on +5V to +15V power, and provide proper binary scaling for reference inputs of either positive or negative polarity. The applications of the AD7533JN include digitally controlled attenuators, programmable gain amplifiers, function generation, linear automatic gain control.
Parametrics
AD7533JN absolute maximum ratings: (1)VDD to GND: -0.3V to +17V; (2)RFB to GND: ±25V; (3)VREF to GND: ±25V; (4)digital input voltage range: -0.3V to VDD +0.3V; (5)OUT1, OUT2 to GND: -0.3V to VDD; (6)power dissipation, To + 75℃: 450mW; derates above + 75℃ by : 6mW/℃; (7)Operating temperature range, plastic: 0 to +70℃; (8)Storage temperature: -65℃ to +125℃; (9)Lead temperature(soldering, 10sec): +300℃.
Features
AD7533JN features: (1) Low est cost 10-bit DAC; (2) Low cost AD7520replacement; (3) Linearity: 1/2, 1 or 2LSB; (4) Low power dissipation; (5)Full four-quadrant multiplying DAC; (6)CMOS/TTL direct interface; (7)Latch free (protection schottky not required); (8)End-point linearity.

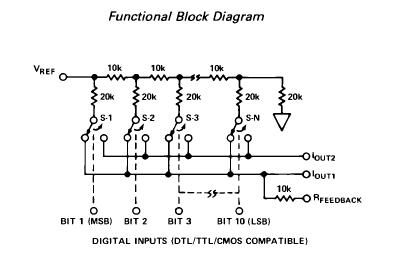

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD7533JN |
|
IC DAC 10BIT MULTIPLYING 16-DIP |
Data Sheet |
|
|
||||||||||||||||||
|
AD7533JNZ |
|
IC DAC 10BIT MULTIPLYING 16-DIP |
Data Sheet |
|
|
||||||||||||||||||
