74LVT16244BDL

SSOP48, 16-bit buffer, -0.5 to +4.6V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.00~4.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.00~4.50

PartNumber:: 74LVT16244BDL

Brand:: Philips Electronics India Limited - PHILIPS | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-22

From Other Seller

Part Number:74LVT16244BDL
US $0.00 - 4.50
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

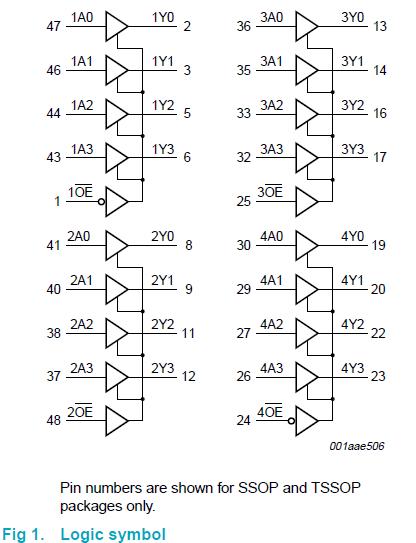

The 74LVT16244BDL is a high-performance BiCMOS product designed for VCC operation at 3.3 V. This device is a 16-bit buffer and line driver featuring non-inverting 3-state bus outputs. The 74LVT16244BDL can be used as four 4-bit buffers, two 8-bit buffers, or one 16-bit buffer.

Parametrics

74LVT16244BDL absolute maximum ratings: (1)VCC, supply voltage: -0.5 to +4.6 V; (2)VI, input voltage: -0.5 to +7.0 V; (3)VO, output voltage, output in OFF-state or HIGH-state: -0.5 to +7.0 V; (4)IIK, input clamping current ,VI < 0 V: -50 mA max; (5)IOK, output clamping current, VO < 0 V: -50 mA max; (6)IO, output current output in LOW-state: 128 mA; output in HIGH-state: -64 mA; (7)Tstg, storage temperature: -65 +150℃; (8)Tj, junction temperature: 150℃.

Features

74LVT16244BDL features: (1)16-bit bus interface; (2)3-state buffers; (3)Output capability: +64 mA and -32 mA; (4)TTL input and output switching levels; (5)Input and output interface capability to systems at 5 V supply; (6)Bus hold data inputs eliminate need for external pull-up resistors to hold unused inputs; (7)Power-up 3-state; (8)Live insertion and extraction permitted; (9)No bus current loading when output is tied to 5 V bus; (10)Latch-up protection: JESD78: exceeds 500 mA; (11)ESD protection: MIL STD 833 method 3015: exceeds 2000 V; Machine model: exceeds 200 V.
