Product Summary
The 74LV138D is a low-voltage Si-gate CMOS device that is pin and function compatible with 74HC/HCT138. The device accepts three binary weighted address inputs (A0, A1, A2) and when enabled, provide 8 mutually exclusive active LOW outputs. The 74LV138D features three enable inputs: two active LOW (E1, and E2) and one active HIGH (E3). Every output will be HIGH unless E1 and E2 are LOW and E3 is HIGH.
Parametrics
74LV138D absolute maximum ratings: (1)VCC DC supply voltage: - 0.5 to +7.0 V; (2)On the conditions of VI < –0.5 or VI > VCC + 0.5V, ±IIK DC input diode current: 20 mA; (3)On the conditions of VO < –0.5 or VO > VCC + 0.5V, ±IOK DC output diode current: 50 mA; (4)On the conditions of –0.5V < VO < VCC + 0.5V, ±IO DC output source or sink current standard outputs: 25 mA; (5)±IGND, ±ICC DC VCC or GND current for types with standard outputs: 50 mA; (6)Tstg Storage temperature range: –65 to +150 ℃.
Features
74LV138D features: (1)Wide operating voltage: 1.0 to 5.5 V; (2)Optimized for low voltage applications: 1.0 to 3.6 V; (3)Accepts TTL input levels between VCC = 2.7 V and VCC = 3.6 V; (4)Typical VOLP (output ground bounce) < 0.8 V at VCC = 3.3 V,; (5)Tamb = 25℃; (6)Typical VOHV (output VOH undershoot) > 2 V at VCC = 3.3 V,; (7)Tamb = 25℃; (8)Demultiplexing capability; (9)Multiple input enable for easy expansion; (10)Ideal for memory chip select decoding; (11)Active LOW mutually exclusive outputs; (12)Output capability: standard; (13)ICC category: MSI.

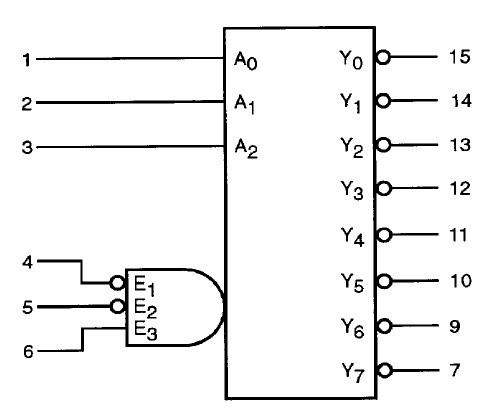

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 74LV138D,112 |
NXP Semiconductors |
Encoders, Decoders, Multiplexers & Demultiplexers 3 TO 8 LINE DECODER DEMUX INV |
Data Sheet |
|
|
||||||||||||
|
74LV138DB,112 |
NXP Semiconductors |
Encoders, Decoders, Multiplexers & Demultiplexers 3 TO 8 LINE DECODER |
Data Sheet |
|
|
||||||||||||
|
74LV138DB,118 |
NXP Semiconductors |
Encoders, Decoders, Multiplexers & Demultiplexers 3 TO 8 LINE DECODER |
Data Sheet |
|
|
||||||||||||
|
74LV138DB-T |
NXP Semiconductors |
Encoders, Decoders, Multiplexers & Demultiplexers 3 TO 8 LINE DECODER DEMUX INV |
Data Sheet |
Negotiable |
|
||||||||||||
|
74LV138D-T |
NXP Semiconductors |
Encoders, Decoders, Multiplexers & Demultiplexers 3 TO 8 LINE DECODER DEMUX INV |
Data Sheet |
Negotiable |
|
||||||||||||
|
74LV138DB |
NXP Semiconductors |
Encoders, Decoders, Multiplexers & Demultiplexers 3 TO 8 LINE DECODER DEMUX INV |
Data Sheet |
Negotiable |
|
||||||||||||
|
74LV138D,118 |
NXP Semiconductors |
Encoders, Decoders, Multiplexers & Demultiplexers 3 TO 8 LINE DECODER |
Data Sheet |
|
|
||||||||||||
