Product Summary

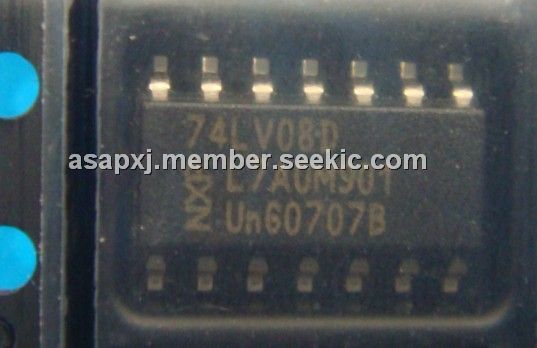

The 74LV08D is a low-voltage Si-gate CMOS device and is pin and function compatible with 74HC/HCT08. It provides the 2-input AND function.
Parametrics
74LV08D absolute maximum ratings: (1)VCC DC supply voltage: - 0.5 to +7.0 V; (2)On the conditions of VI < –0.5 or VI > VCC + 0.5V, ±IIK DC input diode current: 20 mA; (3)On the conditions of VO < –0.5 or VO > VCC + 0.5V, ±IOK DC output diode current: 50 mA; (4)On the conditions of –0.5V < VO < VCC + 0.5V, ±IO DC output source or sink current standard outputs: 25 mA; (5)±IGND, ±ICC DC VCC or GND current for types with standard outputs: 50 mA; (6)Tstg Storage temperature range: –65 to +150 ℃.
Features
74LV08D features: (1)Wide operating voltage: 1.0 to 5.5 V; (2)Optimized for Low Voltage applications: 1.0 to 3.6 V; (3)Accepts TTL input levels between VCC = 2.7 V and VCC = 3.6 V; (4)Typical VOLP (output ground bounce) < 0.8 V at VCC = 3.3 V,; (5)Tamb = 25℃; (6)Typical VOHV (output VOH undershoot) > 2 V at VCC = 3.3 V,; (7)Tamb = 25℃; (8)Output capability: standard; (9)ICC category: SSI.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 74LV08D,112 |
NXP Semiconductors |
Gates (AND / NAND / OR / NOR) QUAD 2-INPUT AND |
Data Sheet |
|
|
||||||||||||
|
74LV08D,118 |
NXP Semiconductors |
Gates (AND / NAND / OR / NOR) QUAD 2-INPUT AND |
Data Sheet |
|
|
||||||||||||
|
74LV08DB,112 |
NXP Semiconductors |
Gates (AND / NAND / OR / NOR) QUAD 2-INPUT AND |
Data Sheet |
|
|
||||||||||||
|
74LV08DB,118 |
NXP Semiconductors |
Gates (AND / NAND / OR / NOR) QUAD 2-INPUT AND |
Data Sheet |
|
|
||||||||||||
