Product Summary

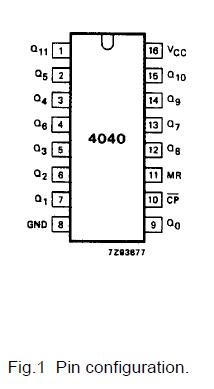

The 74HCT4040 is a high-speed Si-gate CMOS device. It is pin compatible with 4040 of the 4000B series. The 74HCT4040 is specified in compliance with JEDEC standard no. 7A. It is a 12-stage binary ripple counter with a clock input (CP), an overriding asynchronous master reset input (MR) and twelve parallel outputs (Q0 to Q11). The counter advances on the HIGH-to-LOW transition of CP. The applications of the 74HCT4040 include frequency dividing circuits, time delay circuits and control counters.
Parametrics
74HCT4040 absolute maximum ratings: (1)tPHL/ tPLH, propagation delay, CP to Q0: 16ns when CL = 15pF; VCC = 5V; (2)tPHL/ tPLH, propagation delay, Qn to Qn+1: 8ns when CL = 15pF; VCC = 5V; (3) fmax, maximum clock frequency: 79MHz; (4)CI, input capacitance: 3.5pF; (5)CPD, power dissipation capacitance per package: 20pF.
Features
74HCT4040 features: (1)Output capability: standard; (2)ICC category: MS.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 74HCT4040 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
74HCT4040D |
NXP Semiconductors |
Counter ICs 12-STAGE BIN COUNTER |
Data Sheet |
Negotiable |
|
||||||||||||
|
74HCT4040D,652 |
NXP Semiconductors |
Counter ICs 12-STAGE BIN COUNTER |
Data Sheet |
|
|
||||||||||||
 |
74HCT4040D,653 |
NXP Semiconductors |
Counter ICs 12-STAGE BINARY COUNTER |
Data Sheet |
|
|
||||||||||||
 |
74HCT4040DB,112 |
NXP Semiconductors |
Counter ICs 12-STAGE BINARY |
Data Sheet |
|
|
||||||||||||
|
74HCT4040DB |
NXP Semiconductors |
Counter ICs 12-STAGE BINARY COUNTER |
Data Sheet |
Negotiable |
|
||||||||||||
 |
74HCT4040N,652 |
NXP Semiconductors |
Counter ICs 12ST BIN RIP COUNTER |
Data Sheet |
|
|
||||||||||||
|
74HCT4040PW,112 |
NXP Semiconductors |
Counter ICs 12-STAGE BINARY |
Data Sheet |
|
|
||||||||||||
