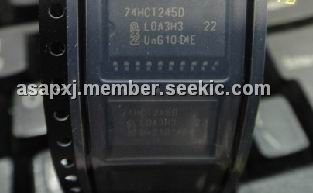

74HCT245D

Si-gate CMOS device, SOP, 200V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~1.00

PartNumber:: 74HCT245D

Brand:: Philips Electronics India Limited - PHILIPS | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-26

From Other Seller

Part Number:74HCT245D
US $0.10 - 1.00
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
HEF4051BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

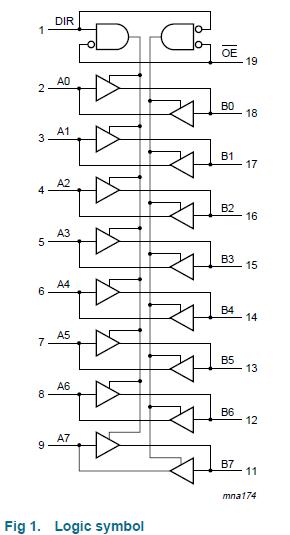

The 74HCT245D is a high-speed Si-gate CMOS device and is pin compatible with Low-Power Schottky TTL (LSTTL). It is an octal transceiver featuring non-inverting 3-state bus compatible outputs in both send and receive directions. The 74HCT245D features an output enable input (OE) for easy cascading and a send/receive input (DIR) for direction control. OE controls the outputs so that the buses are effectively isolated. The 74HCT245D is similar to the 74HC640; 74HCT640 but has true (non-inverting) outputs.

Parametrics

74HCT245D absolute maximum ratings: (1)VCC, supply voltage: -0.5 to +7V; (2)IIK, input diode current: ±20 mA max when VI < -0.5 V or VI > VCC + 0.5 V; (3)IOK, output diode current: ±20 mA max when VO < -0.5 V or; (4)VO > VCC + 0.5 V; (5)IO, output source or sink current: ±35 mA max when VO = -0.5 V to VCC + 0.5 V; (6)ICC, IGND, VCC or GND current: ±70 mA max; (7)Tstg, storage temperature: -65 +150℃.

Features

74HCT245D features: (1)Octal bidirectional bus interface; (2)Non-inverting 3-state outputs; (3)Multiple package options; (4)Complies with JEDEC standard no. 7A; (5)ESD protection: HBM EIA/JESD22-A114-B exceeds 2000 V; MM EIA/JESD22-A115-A exceeds 200 V; (6)Specified from -40 to +85℃ and from -40 to +125℃.
