Product Summary

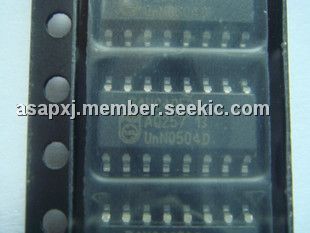

The 74HC4053D is a high-speed Si-gate CMOS device and is pin compatible with the HEF4053B. It is specified in compliance with JEDEC standard no. 7A. The 74HC4053D is triple 2-channel analog multiplexer/demultiplexer with a common enable input (E). The applicantions of 74HC4053D include Analog multiplexing and demultiplexing, Digital multiplexing and demultiplexing, Signal gating.

Parametrics

74HC4053D absolute maximum ratings: (1)supply voltage: -0.5 to +11.0 V; (2)input clamping current: ±20 mA at VI < -0.5 V or VI > VCC + 0.5 V; (3)switch clamping current: ±20 mA at VS < -0.5 V or VS > VCC + 0.5 V; (4)switch current: ±25 mA at -0.5 V < VS < VCC + 0.5 V; (5)negative supply current: -20 mA; (6)quiescent supply current: 50 mA; (7)ground current: -50 mA; (8)storage temperature: -65 to +150 ℃.

Features

74HC4053D features: (1)Low ON resistance: 80 W (typical) at VCC - VEE = 4.5 V, 70 W (typical) at VCC - VEE = 6.0 V, 60 W (typical) at VCC - VEE = 9.0 V; (2)Logic level translation: To enable 5 V logic to communicate with ±5 V analog signals; (3)Typical ‘break before make’ built in; (4)Complies with JEDEC standard no. 7A; (5)ESD protection: HBM EIA/JESD22-A114-C exceeds 2000 V, MM EIA/JESD22-A115-A exceeds 200 V; (6)Multiple package options; (7)Specified from -40 ℃ to +85 ℃ and from -40 ℃ to +125 ℃.

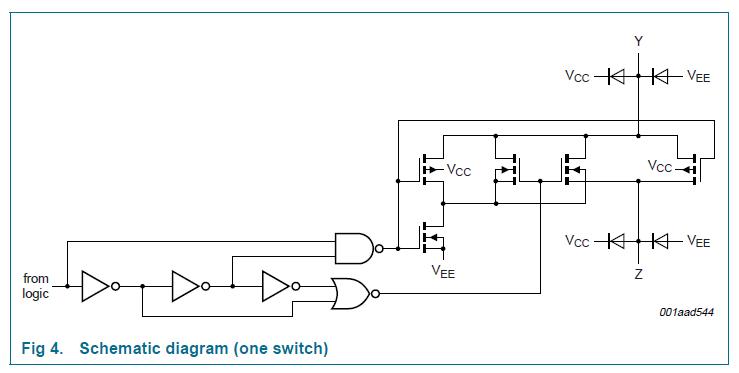

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
74HC4053D
74HC4053D

NXP Semiconductors

Multiplexer Switch ICs TRIPLE 2-CH MUX/DMUX

Data Sheet

Negotiable
74HC4053D,652
74HC4053D,652

NXP Semiconductors

Encoders, Decoders, Multiplexers & Demultiplexers TRIPLE 2-CH MUX/DMUX

Data Sheet

0-1: $0.08
1-25: $0.07
25-100: $0.07
100-250: $0.07
74HC4053D,653
74HC4053D,653

NXP Semiconductors

Encoders, Decoders, Multiplexers & Demultiplexers TRIPLE 2-CHANNEL MUX/DEMUX

Data Sheet

0-1: $0.23
1-25: $0.20
25-100: $0.16
100-250: $0.13
74HC4053DB,118
74HC4053DB,118

NXP Semiconductors

Encoders, Decoders, Multiplexers & Demultiplexers TRIPLE 2-CHANNEL

Data Sheet

0-1: $0.48
1-25: $0.42
25-100: $0.37
100-250: $0.32
74HC4053DB,112
74HC4053DB,112

NXP Semiconductors

Multiplexer Switch ICs TRIPLE 2-CHANNEL

Data Sheet

0-1: $0.53
1-25: $0.41
25-100: $0.36
100-250: $0.31
74HC4053DB
74HC4053DB

NXP Semiconductors

Multiplexer Switch ICs TRIPLE 2-CHANNEL MUX/DEMUX

Data Sheet

Negotiable
74HC4053DB-T
74HC4053DB-T

NXP Semiconductors

Multiplexer Switch ICs TRIPLE 2-CHANNEL MUX/DEMUX

Data Sheet

Negotiable
