Product Summary

The 74HC164 is a high-speed Si-gate CMOS device and is pin compatible with Low power Schottky TTL (LSTTL). It is specified in compliance with JEDEC standard no. 7A. The 74HC164 is an 8-bit edge-triggered shift register with serial data entry and an output from each of the eight stages. Data is entered serially through one of two inputs (DSA or DSB); either input of the 74HC164 can be used as an active HIGH enable for data entry through the other input.

Parametrics

74HC164 absolute maximum ratings: (1)VCC supply voltage: -0.5 +7 V; (2)IIK input diode current VI < -0.5 V or; (3)VI > VCC + 0.5 V: ±20 mA; (4)IOK output diode current VO < -0.5 V or; (5)VO > VCC + 0.5 V: ±20 mA; (6)IO output source or sink current VO = -0.5 V to VCC + 0.5 V:±25 mA; (7)ICC, IGND VCC or GND current: ±50 mA; (8)Tstg storage temperature: -65 +150 ℃.

Features

74HC164 features: (1)Gated serial data inputs; (2)Asynchronous master reset; (3)Complies with JEDEC standard no. 7A; (4)ESD protection: HBM EIA/JESD22-A114-B exceeds 2000 V. MM EIA/JESD22-A115-A exceeds 200 V.; (5)Multiple package options; (6)Specified from -40℃ to +85℃ and -40℃ to +125℃.

Diagrams

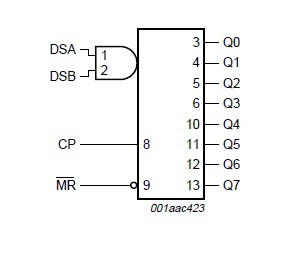

74HC164 pin configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

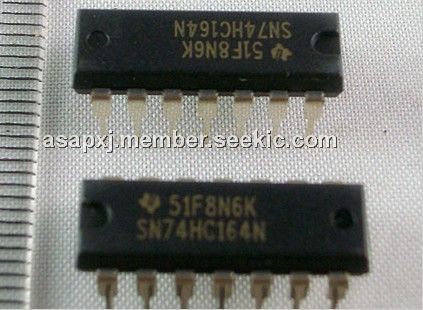

74HC164
74HC164

Other


Data Sheet

Negotiable
74HC164BQ,115
74HC164BQ,115

NXP Semiconductors

Counter Shift Registers 8bit 7V 1CIRC

Data Sheet

0-1: $0.13
1-25: $0.12
25-100: $0.11
100-250: $0.11
74HC164D
74HC164D

NXP Semiconductors

Counter Shift Registers 8-BIT SI-PO SHIFT REGISTER

Data Sheet

Negotiable
74HC164D,652
74HC164D,652

NXP Semiconductors

Counter Shift Registers 8-BIT SI-PO SHIFT

Data Sheet

0-1: $0.22
1-25: $0.18
25-100: $0.15
100-250: $0.13
74HC164D,653
74HC164D,653

NXP Semiconductors

Counter Shift Registers 8BIT SHIFT REGISTER PAR-IN/SERIAL-OUT

Data Sheet

0-1: $0.07
1-25: $0.07
25-100: $0.06
100-250: $0.06
74HC164DB
74HC164DB

NXP Semiconductors

Counter Shift Registers 8-BIT SI-PO SHIFT REGISTER

Data Sheet

Negotiable
74HC164DB,112
74HC164DB,112

NXP Semiconductors

Counter Shift Registers 8-BIT SI-PO SHIFT

Data Sheet

0-1: $0.46
1-25: $0.40
25-100: $0.35
100-250: $0.31
74HC164DB,118
74HC164DB,118

NXP Semiconductors

Counter Shift Registers 8-BIT SI-PO SHIFT

Data Sheet

0-1: $0.46
1-25: $0.40
25-100: $0.35
100-250: $0.31
