Product Summary
The 74F373SCX is an Octal Transparent Latch with 3-STATE Outputs. It consists of eight latches with 3-STATE outputs for bus organized system applications. The flip-flops of the 74F373SCX appear transparent to the data when Latch Enable (LE) is HIGH. When LE is LOW, the data that meets the setup times is latched. Data appears on the bus when the Output Enable (OE) is LOW. When OE is HIGH the bus output is in the high impedance state.
Parametrics
74F373SCX absolute maximum ratings: (1)Storage Temperature: -65℃ to +150℃; (2)Ambient Temperature under Bias: -55℃ to +125℃; (3)Junction Temperature under Bias: -55℃ to +150℃; (4)VCC Pin Potential to Ground Pin: -0.5V to +7.0V; (5)Input Voltage: -0.5V to +7.0V; (6)Input Current: -30 mA to +5.0 mA; (7)Voltage Applied to Output in HIGH State (with VCC = 0V) Standard Output: -0.5V to VCC, 3-STATE Output: -0.5V to +5.5V; (8)Current Applied to Output in LOW State (Max): twice the rated IOL (mA); (9)ESD Last Passing Voltage (Min): 4000V.
Features
74F373SCX features: (1)Eight latches in a single package; (2)3-STATE outputs for bus interfacing; (3)Guaranteed 4000V minimum ESD protection.

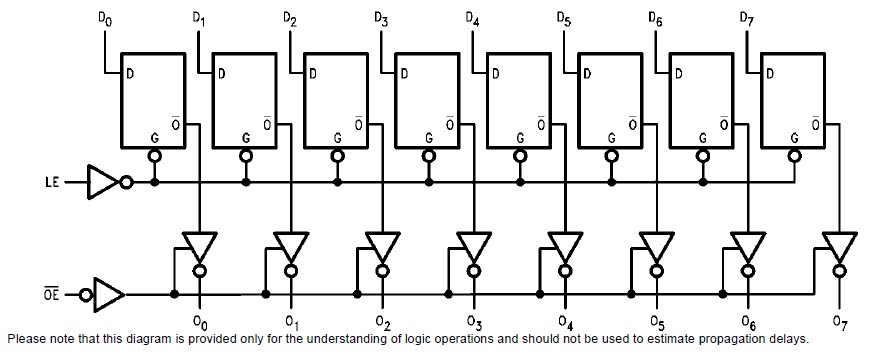

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 74F373SCX |
Fairchild Semiconductor |
Latches Octal Trans Latch |
Data Sheet |
Negotiable |
|
||||
