Product Summary
The 6N137-500E is a High CMR, High Speed TTL Compatible Optocoupler. It combines a GaAsP light emitting diode and an integrated high gain photo detector. An enable input allows the detector to be strobed. The output of the detector IC is an open collector Schottky clamped transistor. The 6N137-500E is suitable for high speed logic interfacing, input/output buffering, as line receivers in environments that conventional line receivers cannot tolerate and are recommended for use in extremely high ground or induced noise environments. The applications of the 6N137-500E include: Isolated Line Receiver, Computer-Peripheral Interfaces, Microprocessor System Interfaces, Digital Isolation for A/D, D/A Conversion, Switching Power Supply, Instrument Input/Output Isolation, Ground Loop Elimination, Pulse Transformer Replacement, Power Transistor Isolation in Motor Drives, Isolation of High Speed Logic Systems.
Parametrics
6N137-500E absolute maximum ratings: (1)Storage Temperature TS: -55 to 125 ℃; (2)Operating Temperature TA: -40 to 85 ℃; (3)Average Forward Input Current IF: 20 mA; (4)Reverse Input Voltage VR: 5 V; (5)Input Power Dissipation PI: 40 mW; (6)Supply Voltage(1 Minute Maximum) VCC: 7 V; (7)Enable Input Voltage (Not to Exceed VCC by more than 500 mV) VE: VCC + 0.5 V; (8)Enable Input Current IE: 5 mA; (9)Output Collector Current IO: 50 mA; (10)Output Collector Voltage VO: 7 V.
Features
6N137-500E features: (1)5 kV/μs Minimum Common Mode Rejection (CMR) at VCM = 50 V for HCPL-X601/X631, HCNW2601 and 10 kV/μs Minimum CMR at VCM = 1000 V for HCPLX611/X661, HCNW2611; (2)High Speed: 10 MBd Typical; (3)LSTTL/TTL Compatible; (4)Low Input Current Capability: 5 mA; (5)Guaranteed ac and dc Performance over Temperature: -40℃ to +85℃; (6)Available in 8-Pin DIP, SOIC-8, Widebody Packages; (7)Strobable Output (Single Channel Products Only); (8)Safety Approval; (9)MIL-PRF-38534 Hermetic Version Available.

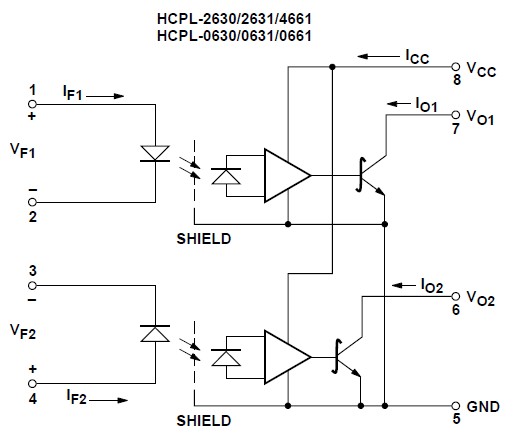

Diagrams

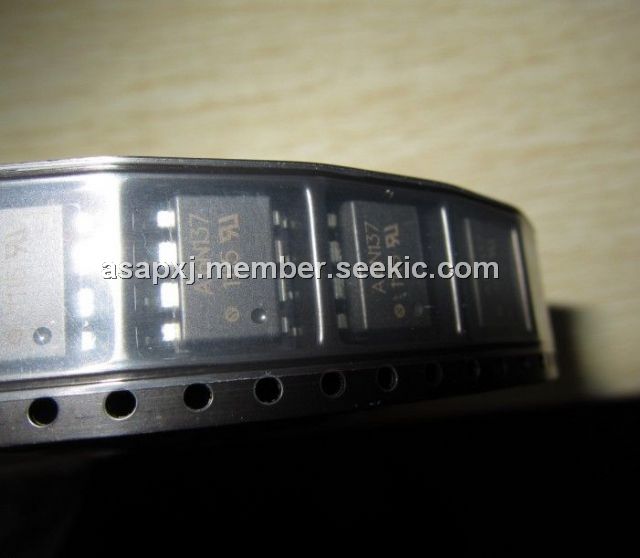

| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 6N137-500E |
Avago Technologies |
High Speed Optocouplers 10 Mb/s 3750Vrms |
Data Sheet |
|
|
||||||||||||
