Product Summary
The VSP5010PMR is a 12-Bit, 31-MSPS, Dual-Channel CCD analog front-end for digital copiers. It provides two independent line-processing channels, and performs analog front-end (AFE) data processing and analog-to-digital conversion. The VSP5010PMR features correlated double sampling (CDS) and sample-and-hold (S/H) processing stages, 14 analog-to-digital converter (ADC) blocks, a digital programmable gain amplifier (DPGA), and an optical black (OB) correction loop. The VSP5010PMR is used in Copiers, Scanners, Facsimiles.
Parametrics
VSP5010PMR absolute maximum ratings: (1)Supply voltage VCC, VDD: +4.0 V; (2)Supply voltage differences VCC, VDD: ±0.1 V; (3)Ground voltage differences AGND, DGND: ±0.1 V; (4)Digital input voltage: –0.3 to (VDD + 0.3) V; (5)Analog input voltage: –0.3 to (VCC + 0.3) V; (6)Input current (all pins except supplies): ±10 mA; (7)Ambient temperature under bias: –40 to +125 ℃; (8)Storage temperature: –55 to +150 ℃; (9)Junction temperature: +150 ℃; (10)Lead temperature (soldering, 5s): +260 ℃; (11)Package temperature (IR reflow, peak, 10s): +235 ℃.
Features
VSP5010PMR features: (1)Dual-Channel CCD Processing: Correlated Double Sampler (CDS), Sample-and-Hold Mode (S/H), Digital Programmable Amplifier, CCD Offset Correction (OB Loop); (2)High-Performance ADC; (3)High-Speed Operation: Sample Rate: 31 MHz (max, Design Ensured), 78-dB SNR (at 0-dB Gain); (4)Low-Power Consumption: Low Voltage: 3.0 V to 3.6 V, Low Power: 290 mW (typ at 3.3 V), Standby Mode: 20 mW (typ).

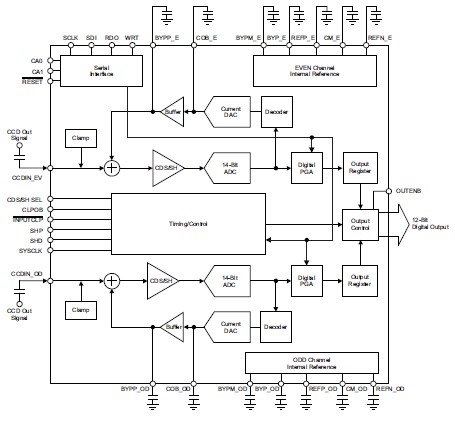

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 VSP5010PMR |
Texas Instruments |
Video A/D Converter ICs 12B,30 MSPS 2Ch AFE |
Data Sheet |
|
|
||||||||
|
VSP5010PMRG6 |
Texas Instruments |
Video A/D Converter ICs 12B,30 MSPS 2Ch AFE |
Data Sheet |
|
|
||||||||
