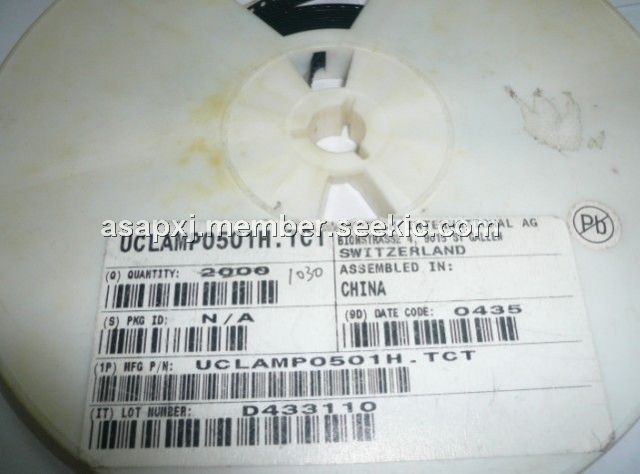

UCLAMP0501H.TCT

μClampTM 1-Line ESD protection, TVS array, Low clamping voltage, Low leakage current, 5V, SOD-523

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.00~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.00~5.00

PartNumber:: UCLAMP0501H.TCT

Brand:: Semtech Corporation - Semtech | Pack: SOD | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-29

From Other Seller

Part Number:UCLAMP0501H.TCT
US $0.00 - 5.00
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
Quantity:

piece

Product Summary

The UCLAMP0501H.TCT is a TVS array. It is designed to protect sensitive electronics from damage or latch-up due to ESD. The UCLAMP0501H.TCT features large cross-sectional area junctions for conducting high transient currents. It offers superior electrical characteristics such as lower clamping voltage and no device degradation when compared to MLVs. The applications of the UCLAMP0501H.TCT are Cellular Handsets & Accessories, Cordless Phones, Personal Digital Assistants (PDA’s), Notebooks & Handhelds, Portable Instrumentation, Digital Cameras, Peripherals, MP3 Players.

Parametrics

UCLAMP0501H.TCT absolute maximum ratings: (1)peak pulse power:240W; (2)maximum peak pulse current:16A; (3)ESD per IEC 61000-4-2(Air):±20kV; (4)ESD per IEC 61000-4-2(Contact):±15kV; (5)lead soldering temperature:260℃(10sec); (6)operating temperature:-55℃ to +125℃; (7)storage temperature:-55℃ to +150℃.

Features

UCLAMP0501H.TCT features: (1)Transient protection for data lines to IEC 61000-4-2 (ESD) 15kV(air), 8kV (contact), IEC 61000-4-4 (EFT) 40A (tp = 5/50ns), Cable Discharge Event (CDE); (2)Ultra-small SOD-523 package (1.7 x 0.9 x 0.7mm); (3)Protects one I/O or power line; (4)Low clamping voltage; (5)Working voltage: 5V; (6)Low leakage current; (7)Solid-state silicon-avalanche technology.
