Product Summary

Parametrics

Series: -
Manufacturer: Texas Instruments
Buck: Yes
Boost: Yes
Flyback: Yes
Inverting: No
Doubler: No
Divider: No
Cuk: No
Isolated: No
Operating Temperature: 0°C ~ 70°C
PWM Type: Current Mode
Number of Outputs: 1

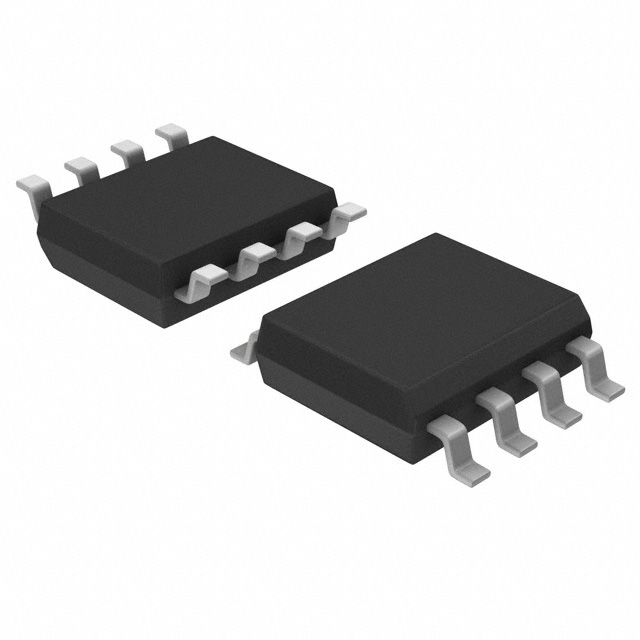

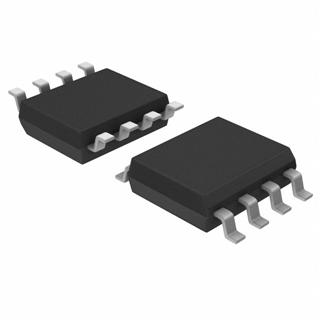

Package / Case: 8-SOIC (0.154", 3.90mm Width)
Duty Cycle: 100%
Packaging: Tube
Frequency - Max: 1MHz
Voltage - Supply: 8.3 V ~ 12 V

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
UCC3802D
UCC3802D
Texas Instruments
Current Mode PWM Controllers Low-Power BiCMOS Current-Mode PWM
Data Sheet
0-1: $1.99
1-25: $1.82
25-100: $1.45
100-250: $1.27
UCC3802DG4
UCC3802DG4
Texas Instruments
Current Mode PWM Controllers Low-Power BiCMOS Current-Mode PWM
Data Sheet
0-1: $2.11
1-25: $1.96
25-100: $1.45
100-250: $1.27
UCC3802DTRG4
UCC3802DTRG4
Texas Instruments
Current Mode PWM Controllers Low-Power BiCMOS Current-Mode PWM
Data Sheet
0-1860: $0.89
1860-2000: $0.86
2000-2500: $0.86
2500-5000: $0.83
UCC3802DTR
UCC3802DTR
Texas Instruments
Current Mode PWM Controllers Low-Power BiCMOS Current-Mode PWM
Data Sheet
0-1860: $0.89
1860-2000: $0.86
2000-2500: $0.86
2500-5000: $0.83
