Product Summary

The TX1471NLT is an Octal SMT Transformer Module.

Parametrics

TX1471NLT absolute maximum ratings: (1)Turns Ratio (Pri:Sec ±2%): 1:2; (2)OCL Secondary @ 25℃ (mH MIN): 1.2; (3)CW/W (pF MAX): 30; (4)LL (μH MAX): .60; (5)Isolation Voltage (Vrms MIN): 1500; (6)Package/ Schematic: YB/1; (7)Primary Pins: 1-2, 3-4, 5-6, 7-8, 9-10, 11-12, 13-14, 15-16.

Features

TX1471NLT features: (1)RoHS peak reflow temperature rating 245℃; (2)Industry smallest T1/E1 quad-port transformer module; (3)Crosstalk: -60 dB typically; (4)Operating temperature range: -40℃ to +85℃; (5)UL recognized (some parts pending approval); (6)Isolation voltage: 1500 Vrms.

Diagrams

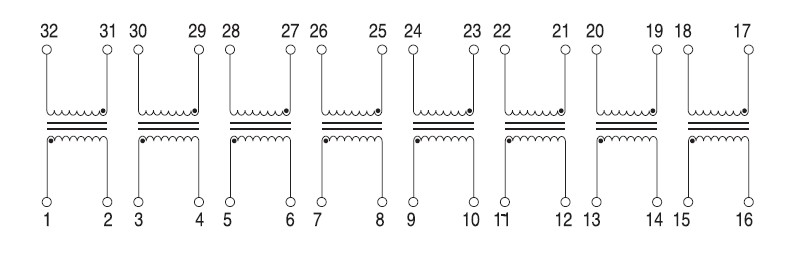

TX1471NLT circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TX1471NLT
TX1471NLT
Pulse
Transformers Audio & Signal SM OCTAL TRANSFORMER
Data Sheet
0-80: $4.77
80-100: $4.28
100-200: $4.28
200-500: $3.82
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TX1467
TX1467
Pulse
Transformers Audio & Signal T1/E1 XFMR DUAL BH
Data Sheet
0-34: $16.57
34-100: $15.46
100-500: $13.92
TX1467NLT
TX1467NLT
Pulse
Transformers Audio & Signal SM OCTAL TRANSFORMER
Data Sheet
0-370: $1.40
370-500: $1.24
500-600: $1.24
600-1000: $1.16
TX1467T
TX1467T
Pulse
Transformers Audio & Signal T1/E1 XFMR DUAL BH
Data Sheet
0-271: $15.46
271-500: $13.92
500-600: $13.92
TX1470NL
TX1470NL
Pulse
Transformers Audio & Signal SM OCTAL TRANSFORMER
Data Sheet
0-64: $4.77
64-100: $4.28
100-500: $3.82
500-1000: $3.56
TX1470NLT
TX1470NLT
Pulse
Transformers Audio & Signal SM OCTAL TRANSFORMER
Data Sheet
0-80: $4.77
80-100: $4.28
100-200: $4.28
200-500: $3.82
TX1470T
TX1470T
Pulse
Transformers Audio & Signal SMALLER OCTAL XFMR T1/E1 XFMR
Data Sheet
Negotiable
