Product Summary
The TX1262NLT is a Quad Port T1/E1 with 8 Transformer.
Parametrics
TX1262NLT absolute maximum ratings: (1)Turns Ratio (Pri:Sec ±2%): 1:2; (2)OCL @ 25℃ (mH MIN): 1.2; (3)CW/W (pF MAX): 35; (4)LL (μH MAX): 0.7; (7)Package/ Schematic: TOU/5; (8)Primary Pins: Transmit: 1-2, 6-7, 11-12, 16-17;Receive: 3-4, 8-9, 13-14, 18-19.
Features
TX1262NLT features: (1)RoHS peak reflow temperature rating 245℃; (2)Models matched to leading quad and dual T1/E1/CEPT/ISDN-PRI transceivers; (3)Crosstalk: -65 dB or better; (4)UL1950 recognized (some parts pending approval); (5)RoHS compliant versions available upon request.

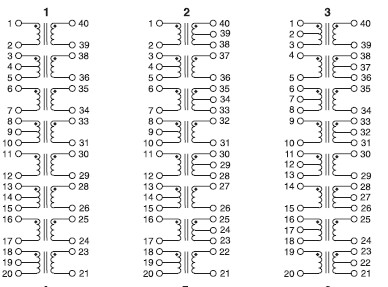

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TX1262NLT |
Pulse |
Transformers Audio & Signal XFMR/CHOKE DUKE |
Data Sheet |
|
|
||||||||||||
