Product Summary

The TX1099NL is a Dual Surface Mount Transformer.

Parametrics

TX1099NL absolute maximum ratings: (1)Turns Ratio (Pri:Sec ±5%): 1CT:1CT & 1CT:1CT; (2)OCL @ 25℃ (mH MIN): 1.20 & 1.20; (3)CW/W (pF MAX): 30 & 30; (4)LL (μH MAX): .80 & .80; (5)DCR Pri (Ω MAX): 0.70 & 0.70; (6)DCR Sec (Ω MAX): BH/1; (7)Package/ Schematic: BH/1; (8)Primary Pins: 1-3, 6-8.

Features

TX1099NL features: (1)RoHS-6 peak reflow temperature rating: 245℃; (2)Dual SMT package contains transmit and receive transformers; (3)Models matched to leading transceiver ICs; (4)UL recognized (some parts pending approval).

Diagrams

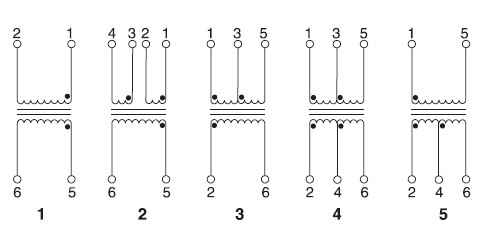

TX1099NL circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TX1099NL
TX1099NL

Pulse

Transformers Audio & Signal Common Mode Choke

Data Sheet

0-1: $3.28
1-25: $2.64
25-100: $2.11
100-500: $1.94
TX1099NLT
TX1099NLT

Pulse

Transformers Audio & Signal TRANSFORMER DUAL

Data Sheet

0-275: $2.06
275-500: $1.86
500-600: $1.86
600-1000: $1.72
