The TSC2017IYZGR is a 12-bit, nanopower, 4-wire micro touch screen controller with i2c interface. It is designed to work with power-sensitive, handheld applications that are based on an advanced low-voltage processor. The TSC2017IYZGR works with a supply voltage as low as 1.6V, which can be supplied by a single-cell battery. It contains a complete, ultra-low power, 12-bit, analog-to-digital (A/D) resistive touch screen converter, including drivers and the control logic to measure touch pressure. The applications of the TSC2017IYZGR include: Cellular Phones, PDA, GPS, and Media Players, Portable Instruments, Point-of-Sale Terminals, Multiscreen Touch Control Systems.
Parametrics
TSC2017IYZGR absolute maximum ratings: (1)Voltage range: –0.4 to VDD + 0.1 V; (2)Digital input voltage to GND: –0.3 to VDD + 0.3 V; (3)Digital output voltage to GND: –0.3 to VDD + 0.3 V; (4)Power dissipation: (TJ Max - TA)/θJA; (5)Thermal impedance, θJA: 62 ℃/W; (6)Operating free-air temperature range, TA: –40 to +85 ℃; (7)Storage temperature range, TSTG: –65 to +150 ℃; (8)Junction temperature, TJ Max: +150 ℃; (9)IEC contact discharge: ±15 kV; (10)IEC air discharge: ±25 kV.
Features
TSC2017IYZGR features: (1)4-Wire Touch Screen Interface; (2)Single 1.6V to 3.6V Supply/Reference; (3)Ratiometric Conversion; (4)Effective Throughput Rate: Up to 20kHz (8-Bit) or 10kHz (12-Bit); (5)Preprocessing to Reduce Bus Activity; (6)On-Chip Temperature Measurement; (7)Touch Pressure Measurement; (8)Digital Buffered PENIRQ; (9)On-Chip, Programmable PENIRQ Pull-Up.

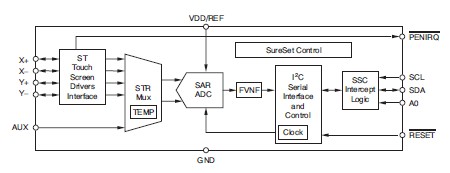

Diagrams
