Product Summary

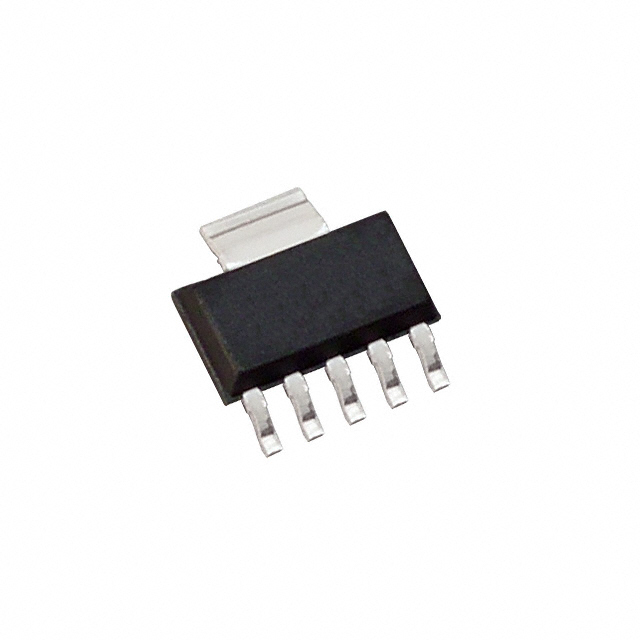

The TPS78601DCQR low-dropout (LDO) low-power linear voltage regulator features high power supply rejection ratio (PSRR), ultralow noise, fast start-up, and excellent line and load transient responses in small outline, SOT223-6 and 5-pin DDPAK packages. The TPS78601DCQR is stable, with a small 1-μF ceramic capacitor on the output. The family uses an advanced, proprietary BiCMOS fabrication process to yield extremely low dropout voltages (e.g., 390 mV at 1.5 A). Each device achieves fast start-up times (approximately 50 μs with a 0.001 μF bypass capacitor) while consuming very low quiescent current (265 μA typical). Moreover, when the TPS78601DCQR is placed in standby mode, the supply current is reduced to less than 1 μA. The TPS78601DCQR exhibits approximately 48 μVRMS of output voltage at 3.0 V output noise with a 0.1 μF bypass capacitor. Applications with analog components that are noise sensitive, such as portable RF electronics, benefit from the high PSRR, low noise features, and the fast response time.
Parametrics
TPS78601DCQR absolute maximum ratings: (1)VIN range: -0.3 V to 6 V; (2)VEN range: -0.3 V to VIN + 0.3 V; (3)VOUT range: 6 V; (4)Peak output current: Internally limited; (5)ESD rating, HBM: 2 kV; (6)ESD rating, CDM: 500 V; (7)Continuous total power dissipation: See Dissipation Ratings table; (8)Junction temperature range, TJ: -40℃ to 150℃; (9)Storage temperature range, Tstg: -65℃ to 150℃.
Features
TPS78601DCQR features: (1)1.5 A Low-Dropout Regulator With Enable; (2)Available in 1.8-V, 2.5-V, 2.8-V, 3-V, 3.3-V, and Adjustable (1.2-V to 5.5-V); (3)High PSRR (49 dB at 10 kHz); (4)Ultralow Noise (48 μVRMS, TPS79630); (5)Fast Start-Up Time (50 μs); (6)Stable With a 1-μF Ceramic Capacitor; (7)Excellent Load/Line Transient Response; (8)Very Low Dropout Voltage (390 mV at Full Load, TPS78630); (9)6-Pin SOT223-6 and 5-Pin DDPAK Package.

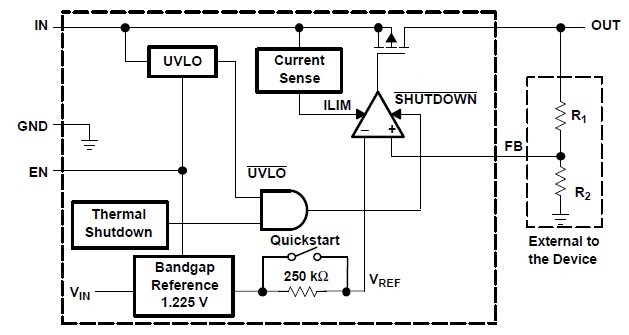

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TPS78601DCQRG4 |
Texas Instruments |
Low Dropout (LDO) Regulators High PSRR Fast RF High-Enable 1.5A |
Data Sheet |
Negotiable |
|
||||||||||||
|
TPS78601DCQR |
Texas Instruments |
Low Dropout (LDO) Regulators High PSRR Fast RF High-Enable 1.5A |
Data Sheet |
|
|
||||||||||||
