Product Summary
The TPS73225DBVR is Cap-Free, NMOS, 250mA Low Dropout Regulator with Reverse Current Protection. It uses a new topology: an NMOS pass element in a voltage-follower configuration. This topology is stable using output capacitors with low ESR, and even allows operation without a capacitor. The TPS73225DBVR also provides high reverse blockage (low reverse current) and ground pin current that is nearly constant over all values of output current. The applications of the TPS73225DBVR include: Portable/Battery-Powered Equipment, Post-Regulation for Switching Supplies, Noise-Sensitive Circuitry such as VCOs, Point of Load Regulation for DSPs, FPGAs, ASICs, and Microprocessors.
Parametrics
TPS73225DBVR absolute maximum ratings: (1)VIN range: -0.3 to 6.0 V; (2)VEN range: -0.3 to 6.0 V; (3)VOUT range: -0.3 to 5.5 V; (4)Junction temperature range, TJ: -55 to +150 ℃; (5)Storage temperature range: -65 to +150 ℃; (6)ESD rating, HBM: 2 kV; (7)ESD rating, CDM: 500 V.
Features
TPS73225DBVR features: (1)Stable with No Output Capacitor or Any Value or Type of Capacitor; (2)Input Voltage Range: 1.7V to 5.5V; (3)Ultralow Dropout Voltage: 40mV Typ at 250mA; (4)Excellent Load Transient Response—with or without Optional Output Capacitor; (5)New NMOS Topology Provides Low Reverse Leakage Current; (6)Low Noise: 30μVRMS Typ (10kHz to 100kHz); (7)0.5% Initial Accuracy; (8)1% Overall Accuracy (Line, Load, and Temperature); (9)Less Than 1μA Max IQ in Shutdown Mode; (10)Thermal Shutdown and Specified Min/Max Current Limit Protection.

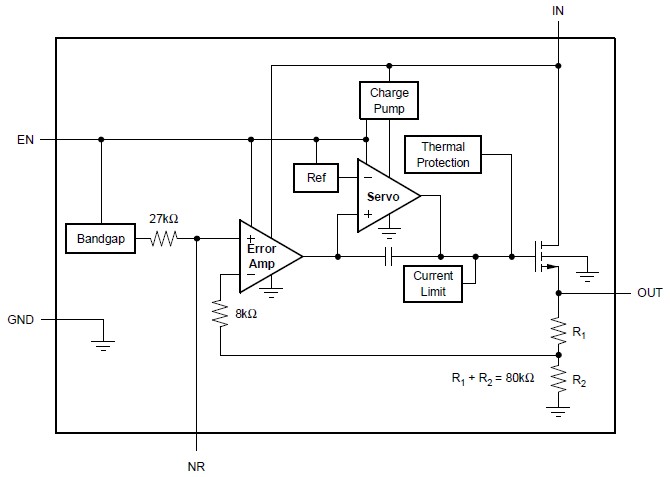

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TPS73225DBVR |
Texas Instruments |
Low Dropout (LDO) Regulators Cap-Free NMOS 250-mA |
Data Sheet |
|
|
||||||||||||
|
TPS73225DBVRG4 |
Texas Instruments |
Low Dropout (LDO) Regulators Cap-Free NMOS 250-mA |
Data Sheet |
|
|
||||||||||||
