TPS60125PWP

Product Summary

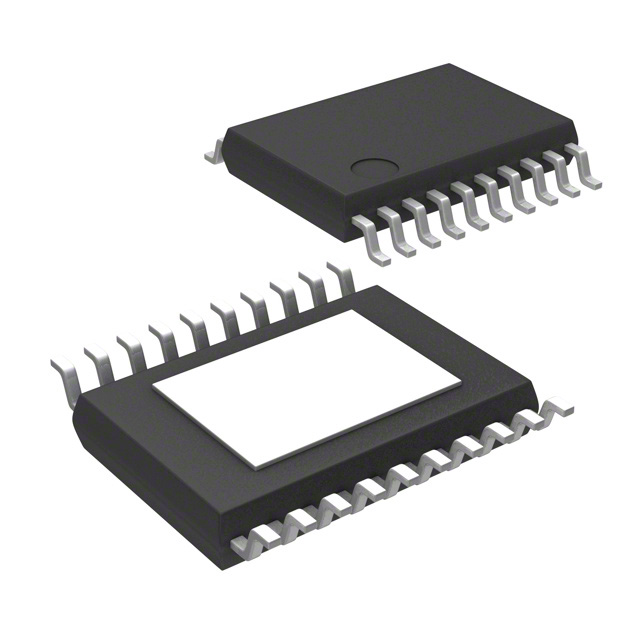

The TPS60125PWP step-up, regulated charge pump generates a 3.3-V or 3-V ±4% output voltage from a 1.8-V to 3.6-V input voltage two alkaline, NiCd, or NiMH batteries). The TPS60125PWP can deliver an output current of at least 200 mA from a 2-V input. The TPS60125PWP features the power-saving pulse-skip mode to extend battery life at light loads. The TPS60125PWP features a power-good output. The logic shutdown function reduces the supply current to a maximum of 1 μA and disconnects the load from the input. The TPS60125PWP is available in the small, thermally enhanced 20-pin PowerPAD package (PWP). The applications of TPS60125PWP are: (1)Applications Powered by Two Battery Cells; (2)Portable Instruments; (3)Battery-Powered Microprocessor Systems; (4)Miniature Equipment; (5)Backup-Battery Boost Converters; (6)PDAs, Organizers, Laptops; (7)MP-3 Portable Audio Players; (8)Handheld Instrumentation; (9)Medical Instruments (e.g., Glucose Meters); (10)Cordless Phones.

Parametrics

TPS60125PWP absolute maximum ratings: (1)Input voltage range, VI (IN, OUT, ENABLE, FB, LBI, LBO/PG): –0.3 V to 5.5 V; (2)Differential input voltage, VID (C1+, C2+ to GND): –0.3 V to (VO + 0.3 V); (3)Differential input voltage, VID (C1–, C2– to GND): –0.3 V to (VI + 0.3 V); (4)Continuous output current: 300 mA; (5)Continuous output current: 150 mA; (6)Storage temperature range, Tstg: –55℃ to 150℃; (7)Lead temperature 1,6 mm (1/16 inch) from case for 10s: 260℃; (8)Maximum junction temperature, TJ: 150℃.

Features

TPS60125PWP features: (1)High Average Efficiency Over Input Voltage Range Because of Special Switching Topology; (2)Minimum 200-mA Output Current From an Input Voltage Range of 1.8-V to 3.6-V; (3)Regulated 3.3-V or 3-V ±4% Output Voltage; (4)No Inductors Required, Low EMI; (5)Only Four External Components Required; (6)55-mA Quiescent Supply Current; (7)0.05-mA Shutdown Current; (8)Load Disconnected in Shutdown; (9)Integrated Low Battery and Power Good Detectors.

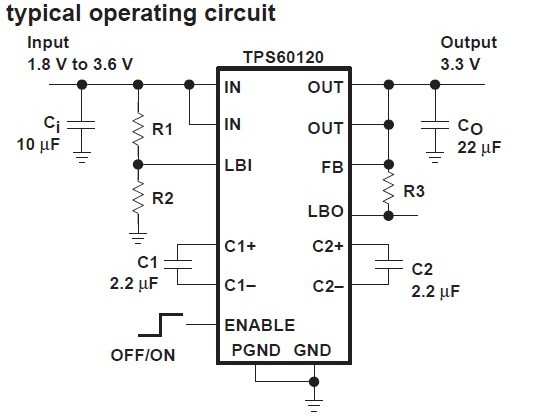

Diagrams
