Product Summary

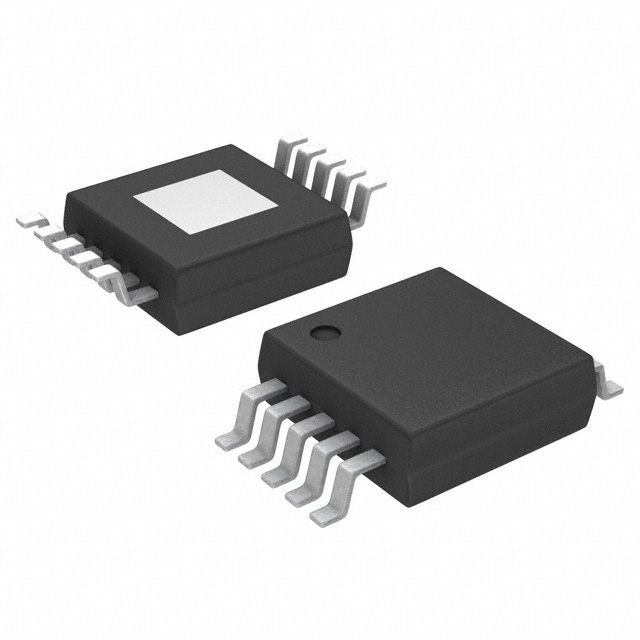

The TPA0253DGQR is a 1-W mono bridge-tied-load (BTL) amplifier designed to drive speakers with as low as 8-Ω impedance. The mono signal is created by summing left and right inputs internally. The amplifier can be reconfigured on the fly to drive two stereo single-ended (SE) signals into headphones. This makes the TPA0253DGQR ideal for use in small notebook computers, PDAs, digital personal audio players, anyplace a mono speaker and stereo headphones are required. From a 5-V supply, the TPA0253DGQR can deliver 1-W of power into an 8-Ω speaker.
Parametrics
TPA0253DGQR absolute maximum ratings: (1)Supply voltage, VDD: 6 V; (2)Input voltage range, VI: –0.3 V to VDD +0.3 V; (3)Operating free-air temperature range, TA: –40 to 85℃; (4)Operating junction temperature range, TJ: –40 to 150℃; (5)Storage temperature range, Tstg: –65℃ to 150℃; (6)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃.
Features
TPA0253DGQR features: (1)Ideal for Notebook Computers, PDAs, and Other Small Portable Audio Devices; (2)1 W Into 8-Ω From 5-V Supply; (3)0.3 W Into 8-Ω From 3-V Supply; (4)Stereo Head Phone Drive; (5)Mono (BTL) Signal Created by Summing Left and Right Signals Internally; (6)Wide Power Supply Compatibility 2.5 V to 5.5 V; (7)Low Supply Current; (8)Shutdown Control 1 uA Typical; (9)Shutdown Pin Is TTL Compatible; (10)–40 to 85℃ Operating TemperatureRange; (11)Space-Saving, Thermally-Enhanced MSOP Packaging.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

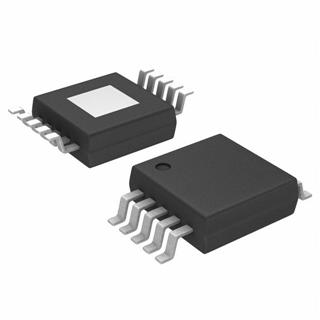

 TPA0253DGQR |
Texas Instruments |
Audio Amplifiers Mono Lo-Pwr Class-AB |
Data Sheet |
|
|
||||||||||||
|
TPA0253DGQRG4 |
Texas Instruments |
Audio Amplifiers Mono Lo-Pwr Class-AB |
Data Sheet |
|
|
||||||||||||
