TMS320DM6437ZDUQ6

Product Summary

The TMS320DM6437ZDUQ6 is a Digital Media Processor. It is based on the third-generation high-performance, advanced VelociTI very-long-instruction-word (VLIW) architecture developed by Texas Instruments (TI), making the TMS320DM6437ZDUQ6 an excellent choice for digital media applications. The TMS320DM6437ZDUQ6 is upward code-compatible from previous devices that are part of the C6000 DSP platform. The C64x DSPs support added functionality and have an expanded instruction set from previous devices.

Parametrics

TMS320DM6437ZDUQ6 absolute maxing ratings: (1)Supply voltage ranges: Core (CVDD, VDDA_1P1V): –0.5 V to 1.5 V, I/O, 3.3V (DVDD33): –0.5 V to 4.2 V, I/O, 1.8V (DVDDR2, DDR_VDDDLL, PLLPWR18, VDDA_1P8V, MXVDD): –0.5 to 2.5 V; (2)Input voltage ranges: VI I/O, 3.3-V pins (except PCI-capable pins): –0.5 V to 4.2 V, VI I/O, 3.3-V pins PCI-capable pins: –0.5 V to DVDD33 + 0.5 V, VI I/O, 1.8 V: –0.5 V to 2.5 V; (3)Output voltage ranges: VO I/O, 3.3-V pins (except PCI-capable pins): –0.5 V to 4.2 V, VO I/O, 3.3-V pins PCI-capable pins: –0.5 V to DVDD33 + 0.5 V, VO I/O, 1.8 V: –0.5 V to 2.5 V; (4)Operating Junction temperature ranges, TJ: Commercial: 0℃ to 90℃, Automotive (Q or S suffix): –40℃ to 125℃; (5)Storage temperature range, Tstg (default): –65℃ to 150℃.

Features

TMS320DM6437ZDUQ6 features: (1)High-Performance Digital Media Processor; (2)VelociTI.2. Extensions to VelociTI Advanced Very-Long-Instruction-Word (VLIW) TMS320C64x+ DSP Core; (3)C64x+ Instruction Set Features; (4)C64x+ L1/L2 Memory Architecture; (5)Supports Little Endian Mode Only; (6)Video Processing Subsystem (VPSS); (7)External Memory Interfaces (EMIFs); (8)Enhanced Direct-Memory-Access (EDMA) Controller (64 Independent Channels); (9)Two 64-Bit General-Purpose Timers (Each Configurable as Two 32-Bit Timers) ; (10)One 64-Bit Watch Dog Timer; (11)Two UARTs (One with RTS and CTS Flow Control); (12)Master/Slave Inter-Integrated Circuit (I2C Bus); (13)Two Multichannel Buffered Serial Ports (McBSPs).

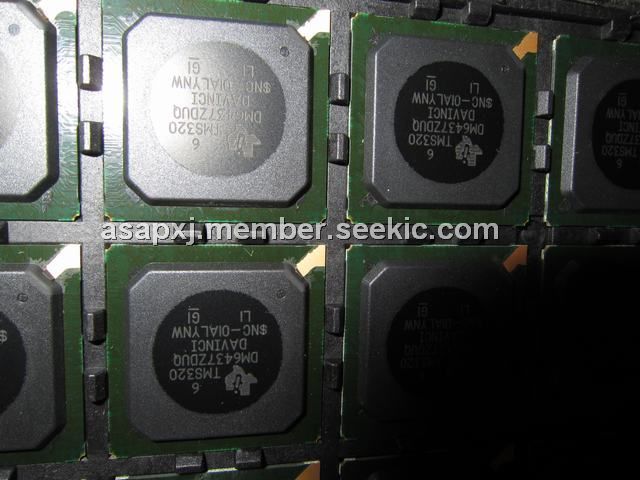

Diagrams
