Product Summary
The TLV431CDBVR is a low-voltage 3-terminal adjustable voltage reference with specified thermal stability over applicable industrial and commercial temperature ranges. Output voltage can be set to any value between VREF (1.24 V) and 6 V with two external resistors. The TLV431CDBVR operates from a lower voltage (1.24 V) than the widely used TL431 and TL1431 shunt-regulator references.
Parametrics
TLV431CDBVR absolute maximum ratings: (1)Cathode voltage, VKA: 7V; (2)Continuous cathode current range, IK: -20 mA to 20 mA; (3)Reference current range, Iref: -0.05 mA to 3 mA; (4)Package thermal impedance, θJA: D package 97℃/W; (5)DBV package: 206℃/W; (6)DBZ package: 206℃/W; (7)DCK package: 252℃/W; (8)LP package: 140℃/W; (9)PK package:52℃/W; (10)Operating virtual junction temperature: 150℃; (11)Storage temperature range, Tstg: 65℃ to 150℃.
Features
TLV431CDBVR features: (1)Low-Voltage Operation: VREF = 1.24 V; (2)Adjustable Output Voltage, VO = VREF to 6 V; (3)Reference Voltage Tolerances at 25℃, 1.5% for TLV431; (4)Typical Temperature Drift: 4 mV (0℃ to 70℃), 6 mV (–40℃ to 85℃), 11 mV (–40℃ to 125℃); (5)Low Operational Cathode Current: 80 μA Typ; (6)0.25-Ω Typical Output Impedance; (7)Ultra-Small SC-70 Package Offers 40% Smaller Footprint Than SOT-23-3; (8)See TLVH431 and TLVH432 for Wider VKA (1.24 V to 18 V) and IK (80 mA), Additional SOT-89 Package, Multiple Pinouts for SOT-23-3 and SOT-89 Packages.

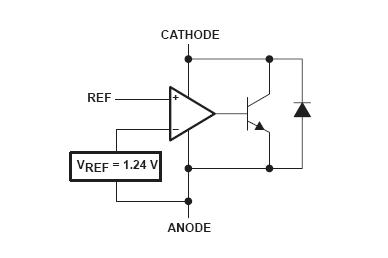

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TLV431CDBVR |
Texas Instruments |
Voltage & Current References Lw V Adj Shunt |
Data Sheet |
|
|
||||||||||||
|
TLV431CDBVRE4 |
Texas Instruments |
Voltage & Current References Lo-Vtg Adj Precision Shunt Regulator |
Data Sheet |
|
|
||||||||||||
|
