Product Summary
The TLC7524CDR is a coms, 8-bit, digital-to-analog converter (DAC) designed for easy interface to most popular microprocessors. The devices of the TLC7524CDR are 8-bit, multiplying DACs with input latches and load cycles similar to the write cycles of a random access memory. The TLC7524CDR is characterized for operation from 0℃ to 70℃.
Parametrics
TLC7524CDR absolute maximum ratings: (1)Supply voltage range, VDD: 0.3V to 16.5V; (2)Digital input voltage range, VI: 0.3V to VDD + 0.3V; (3)Reference voltage, Vref: ±25V; (4)Peak digital input current, II: 10μA; (5)Operating free-air temperature range, TA: 0℃ to +70℃; (6)Storage temperature range, Tstg: 65℃ to +150℃; (7)Case temperature for 10 seconds, TC: FN package: +260℃; (8)Lead temperature 1,6mm (1/16 inch) from case for 10 seconds: D, N, or PW package: +260℃.
Features
TLC7524CDR features: (1)Easily Interfaced to Microprocessors; (2)On-Chip Data Latches; (3)Monotonic Over the Entire A/D Conversion Range; (4)Segmented High-Order Bits Ensure Low-Glitch Output; (5)Interchangeable With Analog Devices AD7524, PMI PM-7524, and Micro Power Systems MP7524; (6)Fast Control Signaling for Digital Signal-Processor Applications Including Interface With TMS320; (7)CMOS Technology.

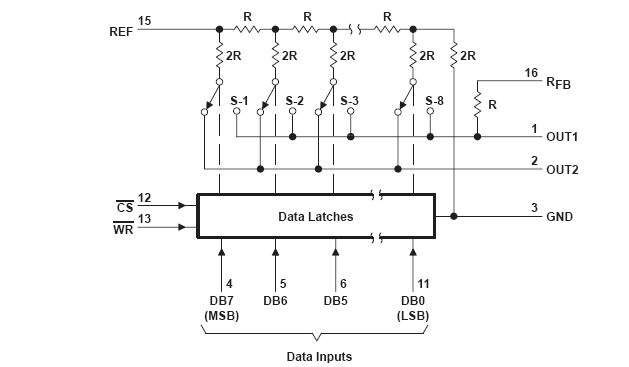

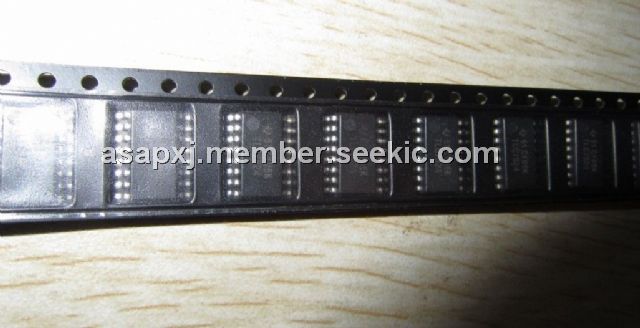

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TLC7524CDR |
Texas Instruments |
DAC (D/A Converters) 8-Bit 0.1 us MDAC Parallel Input |
Data Sheet |
|
|
||||||||||||
|
TLC7524CDRG4 |
Texas Instruments |
DAC (D/A Converters) 8-Bit 0.1 us MDAC Parallel Input |
Data Sheet |
|
|
||||||||||||
