Product Summary

The TLC0834IN is a 8-bit successiveapproximation analog-to-digital converter. The serial input or output is configured to interface with standard shift registers or microprocessors. The TLC0834IN is software configured for single-ended or differential inputs as well as pseudo-differential input assignments. The differential analog voltage input allows for common-mode rejection or offset of the analog zero input voltage value. The TLC0834IN is characterized for operation from –40℃ to 85℃.

Parametrics

TLC0834IN absolute maximum ratings: (1)Supply voltage, VCC: 6.5 V; (2)Input voltage range: Logic: –0.3 V to VCC + 0.3 V; Analog: –0.3 V to VCC+ 0.3 V; (3)Input current, II: ±5 mA; (4)Total input current: ±20 mA; (5)Operating free-air temperature range, TA: C suffix: 0 to 70℃; I suffix: –40 to 85℃; (6)Storage temperature range, Tstg: –65 to 150℃; (7)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: N package: 260℃.

Features

TLC0834IN features: (1)8-Bit Resolution; (2)Easy Microprocessor Interface or Stand-Alone Operation; (3)Operates Ratiometrically or With 5V Reference; (4)4- or 8-Channel Multiplexer Options With Address Logic; (5)Input Range 0 to 5 V With Single 5-V Supply; (6)Remote Operation With Serial Data Link; (7)Inputs and Outputs Are Compatible With TTL and MOS; (8)Conversion Time of 32 ms at fclock = 250 kHz; (9)Functionally Equivalent to the ADC0834 and ADC0838 Without the Internal Zener Regulator Network; (10)Total Unadjusted Error: ±1 LSB.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

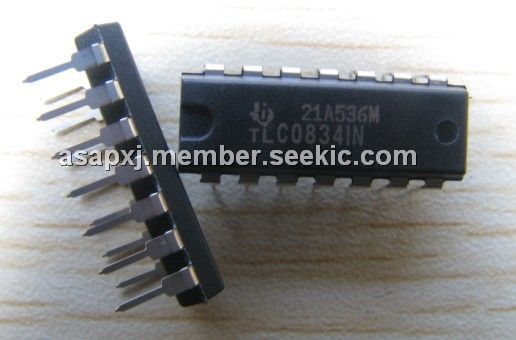

TLC0834IN
TLC0834IN
Texas Instruments
ADC (A/D Converters) 8bit A/D
Data Sheet
0-1: $2.32
1-25: $2.12
25-100: $1.69
100-250: $1.47
TLC0834INE4
TLC0834INE4
Texas Instruments
ADC (A/D Converters) 8-Bit 20 kSPS Serial Out
Data Sheet
0-1: $1.86
1-25: $1.69
25-100: $1.31
100-250: $1.25
