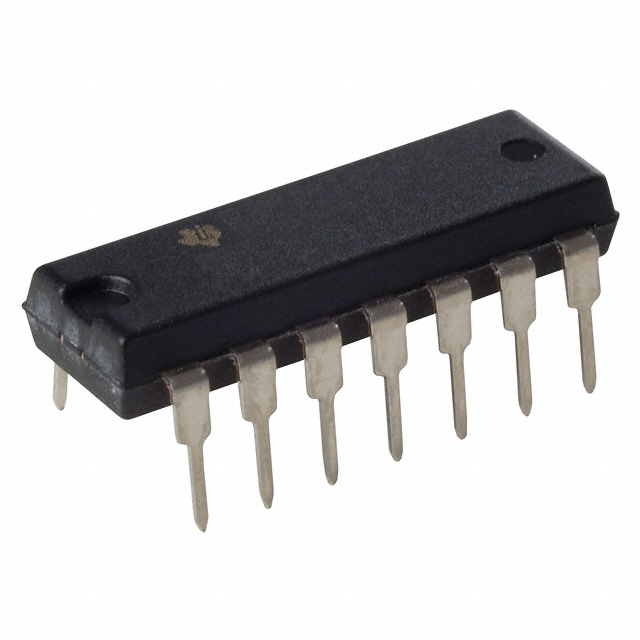

Product Summary

The TL084CN is a Quad JFET-Input General-Purpose Operational Amplifier. It is designed to offer a wider selection than any previously developed operational amplifier family. The TL084CN incorporates well-matched, high-voltage JFET and bipolar transistors in a monolithic integrated circuit. The TL084CN features high slew rates, low input bias and offset currents, and low offset-voltage temperature coefficient. Offset adjustment and external compensation options are available within the TL08x family.

Parametrics

TL084CN absolute maximum ratings: (1)Supply voltage, VCC+:18V; (2)Supply voltage VCC-:-18V; (3)Differential input voltage, VID:±30V; (4)Input voltage, VI:±15V; (5)Duration of output short circuit:Unlimited; (6)Operating free-air temperature range, TA:0℃ to 70℃; (7)Operating virtual junction temperature:150℃; (8)Storage temperature range, Tstg:-65℃ to 150℃; (9)Package thermal impedance, θJA:76℃/W.

Features

TL084CN features: (1)Low Power Consumption; (2)Wide Common-Mode and Differential Voltage Ranges; (3)Low Input Bias and Offset Currents; (4)Output Short-Circuit Protection; (5)Low Total Harmonic Distortion:0.003% Typ; (6)High Input Impedance:JFET-Input Stage; (7)Latch-Up-Free Operation; (8)High Slew Rate:13 V/μs Typ; (9)Common-Mode Input Voltage Range Includes VCC+.

Diagrams

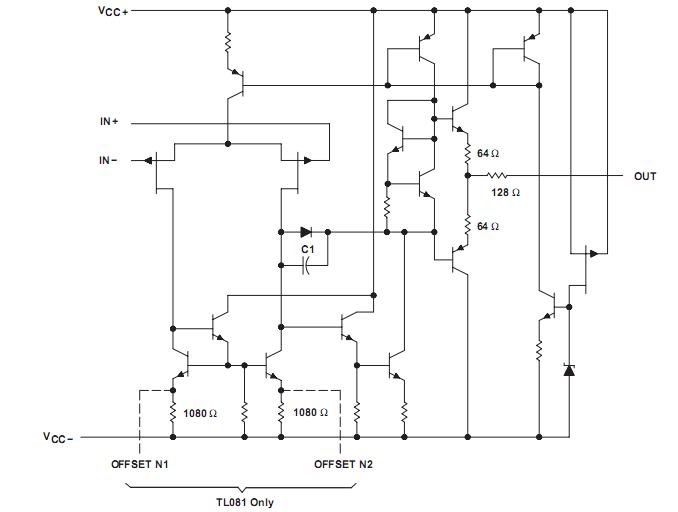

TL084CN circuit diagram
