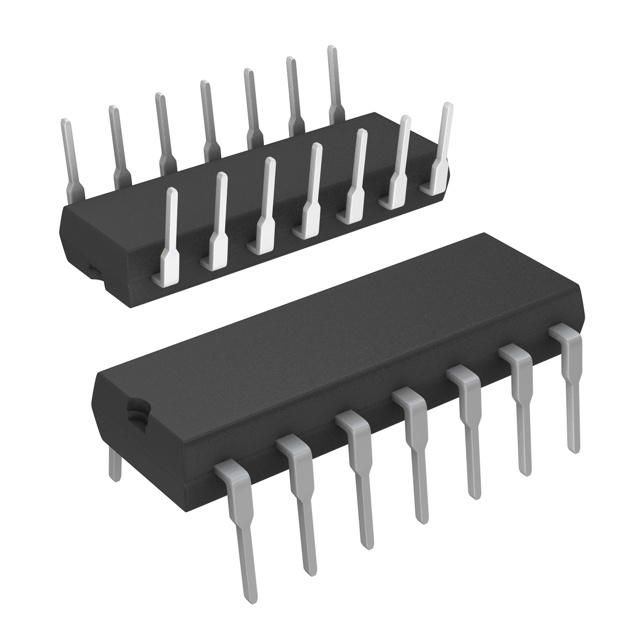

Product Summary

The TL074CN is a high-speed JFET input single operational amplifier. The JFET input operational amplifier incorporates well matched, high-voltage JFET and bipolar transistors in a monolithic integrated circuit. The TL074CN features high slew rates, low input bias and offset currents, and low offset voltage temperature coefficient.

Parametrics

TL074CN absolute maximum ratings: (1)Supply voltage: ±18 V; (2)Vi Input voltage: ±15 V; (3)Vid Differential input voltage: ±30 V; (4)Ptot Power dissipation: 680 mW; (5)Rthja, Thermal resistance junction to ambient, DIP14: 80℃/W; SO-14: 105℃/W; (6)Thermal resistance junction to case, DIP14: 33; SO-14: 31℃/W; (7)Output short-circuit duration: Infinite; (8)Toper Operating free-air temperature range: -40 to +105℃; (9)Tstg Storage temperature range: -65 to +150 ℃; (10)ESD, HBM: human body model(7): 1 kV; MM: machine model(8): 200 V; CDM: charged device model(9): 1.5 kV.

Features

TL074CN features: (1)Wide common-mode (up to VCC+) and differential voltage range; (2)Low input bias and offset current; (3)Low noise en = 15 nV/ √Hz (typ); (4)Output short-circuit protection; (5)High input impedance JFET input stage; (6)Low harmonic distortion : 0.01% (typical); (7)Internal frequency compensation; (8)Latch up free operation; (9)High slew rate: 16 V/μs (typical).

Diagrams

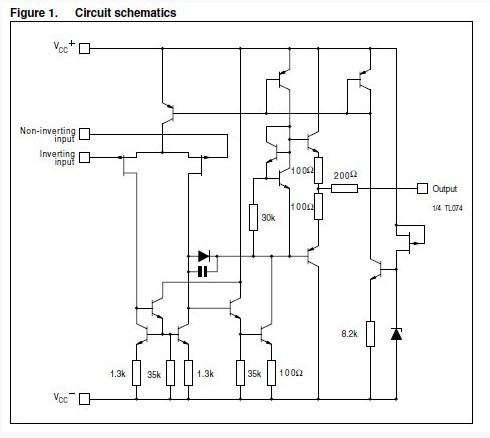

TL074CN circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TL074CN
TL074CN

STMicroelectronics

Operational Amplifiers - Op Amps Quad Low Noise JFET

Data Sheet

0-1: $0.28
1-10: $0.23
10-100: $0.17
100-250: $0.16
TL074CNE4
TL074CNE4

Texas Instruments

Operational Amplifiers - Op Amps Quad Low-Noise JFET-Input

Data Sheet

0-1: $0.41
1-25: $0.31
25-100: $0.28
100-250: $0.24
TL074CNSR
TL074CNSR

Texas Instruments

Operational Amplifiers - Op Amps Quad Low-Noise JFET-Input

Data Sheet

0-1: $0.39
1-25: $0.29
25-100: $0.24
100-250: $0.21
TL074CNSRE4
TL074CNSRE4

Texas Instruments

Operational Amplifiers - Op Amps Quad Low-Noise JFET-Input

Data Sheet

0-1: $0.32
1-25: $0.25
25-100: $0.21
100-250: $0.19
TL074CNSRG4
TL074CNSRG4

Texas Instruments

Operational Amplifiers - Op Amps Quad Lo-Noise JFET- Inp Gen-Purp Op Amp

Data Sheet

0-1: $0.32
1-25: $0.25
25-100: $0.21
100-250: $0.19
