Product Summary

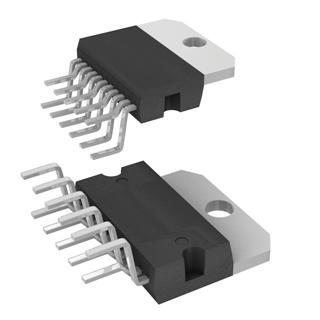

The TDA2004R is a class B dual audio power amplifier in MULTIWATT package specifically designedfor car radio applications; stereoamplifiers are easily designed using this device that provides a high current capability (up to 3.5A) and that can drive very low impedance loads (down to 1.6W ). Its thermal Resistance Junction-case is 3 °C/W Max.
Parametrics
TDA2004R absolute maximum ratings:(1)VS, Opearting Supply Voltage: 18 V; (2)VS, DC Supply Voltage: 28 V; (3)VS, Peak Supply Voltage (for 50ms): 40 V; (4)IO (*), Output Peak Current (non repetitive t = 0.1ms): 4.5 A; (5)IO (*), Output Peak Current (repetitive f . 10Hz): 3.5 A; (6)Ptot, Power Dissipation at Tcase = 60°C: 30 W; (7)Tj, Tstg, Storage and Junction Temperature: –40 to 150 °C.
Features
TDA2004R features:(1)low distortion; (2)low noise; (3)high reliability of the chip and of the package with additional safety during operation thanks to protections against: output ac short circuit to ground; very inductive loads; overratingchip temperature; loaddump voltage surge; fortuitous openground; (4)space and cost saving: very low number of external components,very simple mounting system with no electrical isolation between the packageand the heatsink.

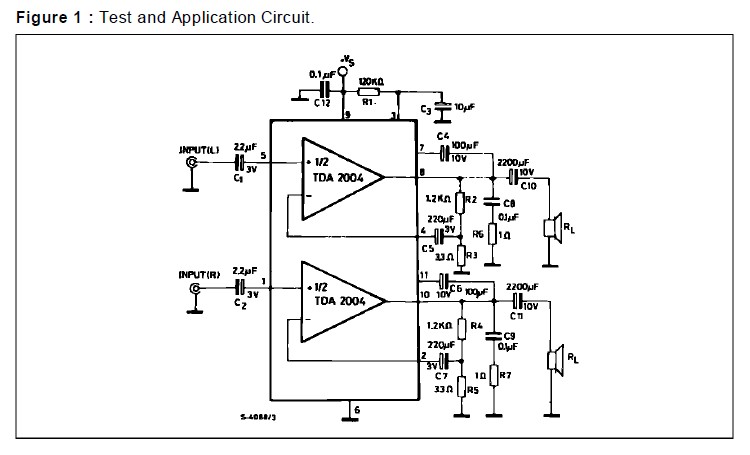

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TDA2004R |
STMicroelectronics |
Audio Amplifiers 10+10W Stereo Amp |
Data Sheet |
|
|
|||||||||||||
