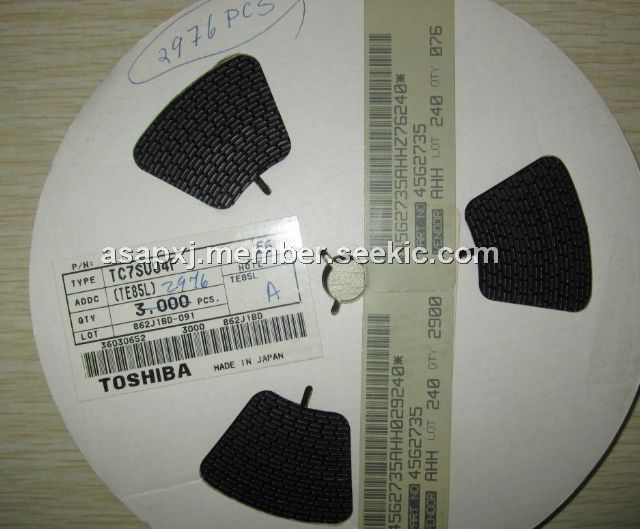

TC7SU04FTE85L

TC7SU04FTE85L, 5SSOP, Inverter, -0.5 to 5 V, ±20 mA, 200 mW

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.05~0.05 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.05~0.05

PartNumber:: TC7SU04FTE85L

Brand:: Toshiba Semiconductor - Toshiba | Pack: SMD | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-13

From Other Seller

Part Number:TC7SU04FTE85L
US $0.05 - 0.05
RTL8102EL

US $1.00 - 2.00 / Piece
(0) Remove
LA76810A

US $0.90 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The TC7SU04FTE85L is a high speed C2MOS Inverter fabricated with silicon gate C2MOS technology. The TC7SU04FTE85L achieves high speed operation similar to equivalent LSTTL while maintaining the C2MOS low power dissipation. The internal circuit is composed of single stages inverter, it can be applied for crystal oscillation. The input is equipped with protection circuits against static discharge or transient excess voltage. Output currents are 1/2 compared to TC74HC series models.

Parametrics

TC7SU04FTE85L absolute maximum ratings: (1)Supply voltage range VCC: -0.5 to 5 V; (2)DC input voltage VIN: -0.5 to VCC + 0.5 V; (3)DC output voltage VOUT: -0.5 to VCC + 0.5 V; (4)Input diode current IIK: ±20 mA; (5)Output diode current IOK: ±20 mA; (6)DC output current IOUT: ±12.5 mA; (7)DC VCC/ground current ICC: ±25 mA; (8)Power dissipation PD: 200 mW; (9)Storage temperature range Tstg: -65℃ to 150℃; (10)Lead temperature (10 s) TL: 260℃.

Features

TC7SU04FTE85L features: (1)High speed: tpd = 7 ns (typ.) at VCC = 5 V; (2)Low power dissipation: ICC = 1 μA (max) at Ta = 25℃; (3)High noise immunity: VNIH = VNIL = 28% VCC (min); (4)Output drive capability: 5 LSTTL loads; (5)Symmetrical output impedance: |IOH| = IOL = 2 mA (min); (6)Balanced propagation delay time: tpLH ≈ tpHL; (7)Wide operating voltage range: VCC (opr) = 2 to 6 V.
